Simplicity 1694389 - Reattaching the Grass Catcher

10
Removing & Reattaching
REATTACHING
THE GRASS CATCHER
Models with out 3-Point Hitch
1. Set the front and back plate assembly on the pins
(Figure 19).
2. Secure with the long hitch pin (C, Figure 19)
Models with 3-Point Hitch
1. Set the front and back plate assembly on the clevis
pins (Figure 20).
2. Secure with the hitch pin (C, Figure 20).

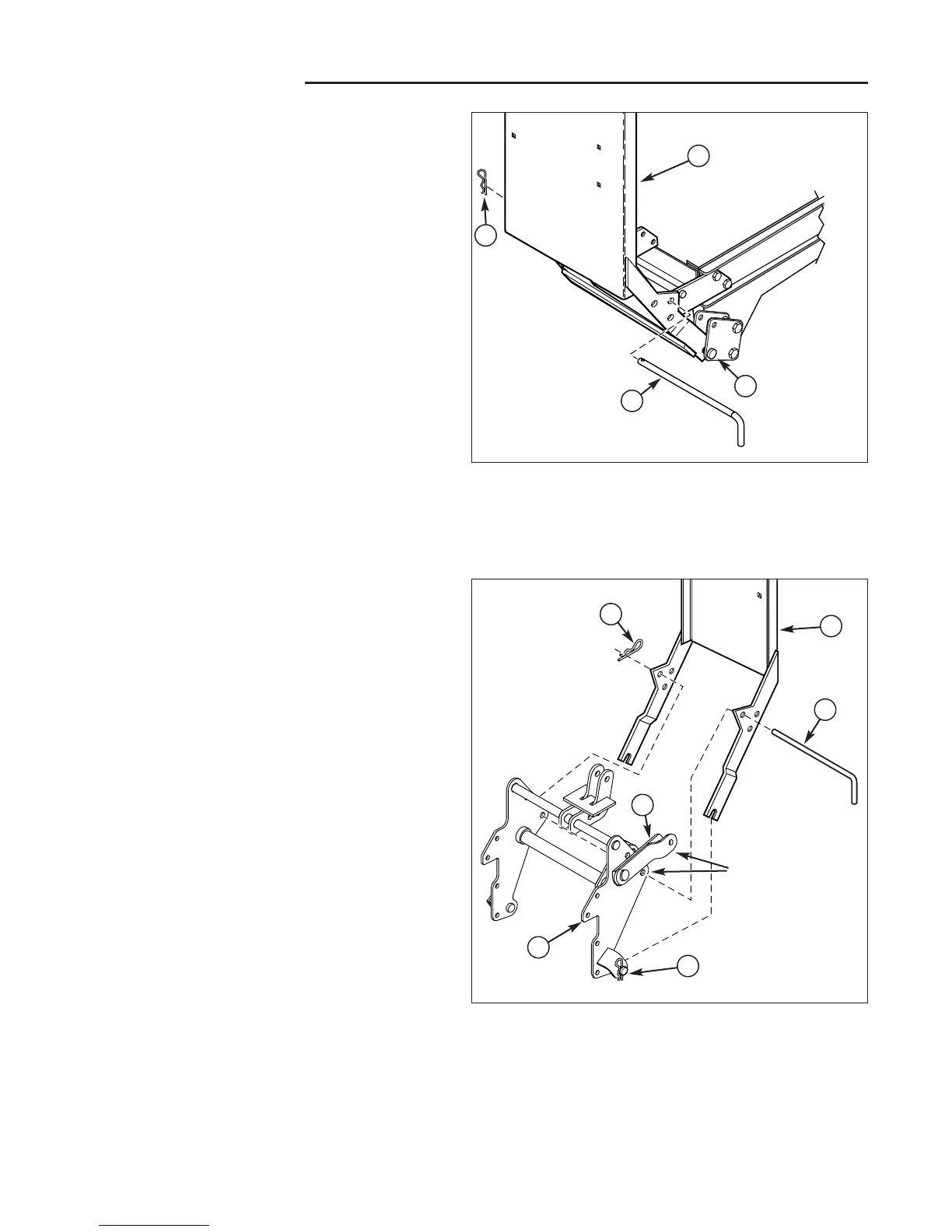

Figure 19. Install Back Plate, without 3-Point Hitch
A. Hair Pin Clip
B. Back Plate
C. Hitch Pin
D. Lower Spacer
A
C
D
Figure 20. Install Back Plate, with 3-Point Hitch
A. Hair Pin Clip
B. Back Plate
C. Hitch Pin
D. Clevis Pin
E. Lift Arm
F. 3-Point Hitch
A
B
D
C
Lift arm must
be above lower
hole.
F
E
B
