INITIAL INSTALLATION & ASSEMBLY

Assemble Front and Back Plate

1. For units with left side discharge use the set of holes

on the right side of the back plate. For units with right

side discharge use the set of holes on the left side of

the back plate. Attach the back plate (A, Figure 6 &

7) to the front plate (B) using carriage bolts, lock-

washers, and nuts. Use two 5/16-18 x 3/4” carriage

bolts (D) in the top two holes, and two 5/16-18 x 1-

1/4” carriage bolts (E) in the bottom holes.

2. For units with left side discharge the cover plate

mounts to the right side of the back plate. For units

with right side discharge the cover plate mounts to

the left side of the back plate. Install the cover plate

(H, Figure 6 & 7) on the back plate (A). Secure with

four 5/16-18 x 1 capscrews (G), and locknuts (F).

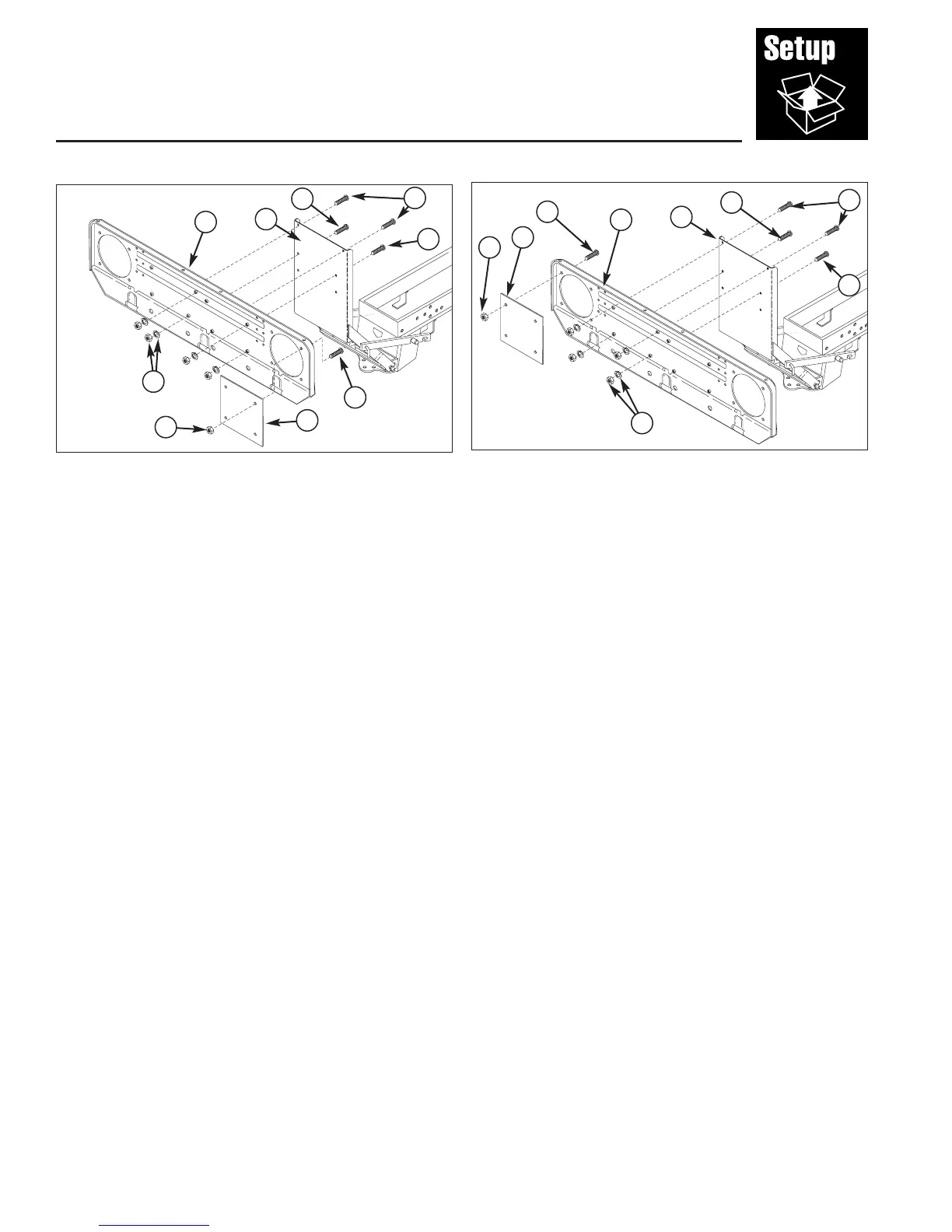

Figure 7. Install RH Discharge Back Plate

A. Back Plate

B. Front Plate

C. 5/16-18 Nuts & Lockwashers

D. 5/16-18 x 3/4 Carriage Bolts

E. 5/16-18 x 1-1/4 Carriage Bolts

F. Locknut, 5/16-18

G. 5/16-18 x 1 Capscrew

H. Cover Plate

Initial Collector Assembly -

All Models

Figure 6. Install LH Discharge Back Plate
