8
Initial Installation & Assembly
Assemble Catcher Bags
See Figure 11.
1. Insert the wire hoop (H) through the cloth bag (B).
2. Install the clamp (E) and hanger bracket (D). Secure
with two 5/16-18 x 3/4 carriage bolts (C), lockwashers
(G), and nuts (F).
Install Cover
1. See Figure 12. Hook the bags (A) on the back plate
(B).
Note: If desired, the bags can be lined with 30
gallon trash bags for easy disposal.
2. See Figure 13. Set the cover (A) on top of the bags
(B) and align the hinges (C).
3. See Figure 14. Install the hinge pins (B) through the
the hinges (C) and secure with a hair pin clip (D).
NOTE: Push the hair pin clips all the way on or they will
be bent by the hinge when the cover is opened.

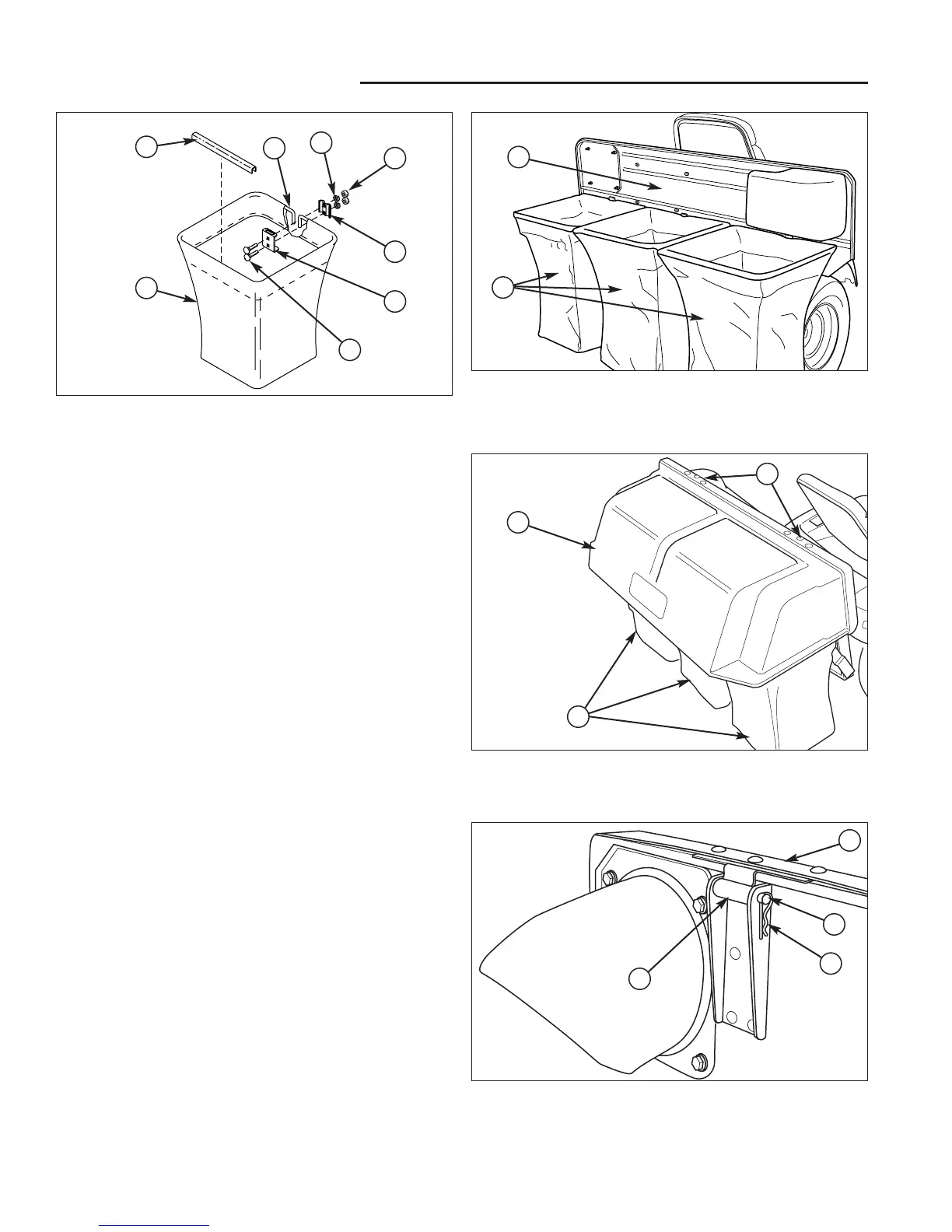

Figure 11. Assemble Catcher Bags
A. Clip E. Clamp
B. Cloth Bag F. Nut
C. 5/16-18 x 3/4 Carriage Bolt G. Lockwasher
D. Hanger Bracket H. Wire Hoop
Figure 12. Install the Bags
A. Bags
B. Back Plate
A
B
A
B
C
D
E
F
G
H
Figure 14. Install HInge Pins
A. Cover C. Hinge
B. Hinge Pin D. Hair Pin Clip
A
B
C
D
Figure 13. Install Cover
A. Cover C. Hinges
B. Bags
A
C
B
