11
Removing & Reattaching

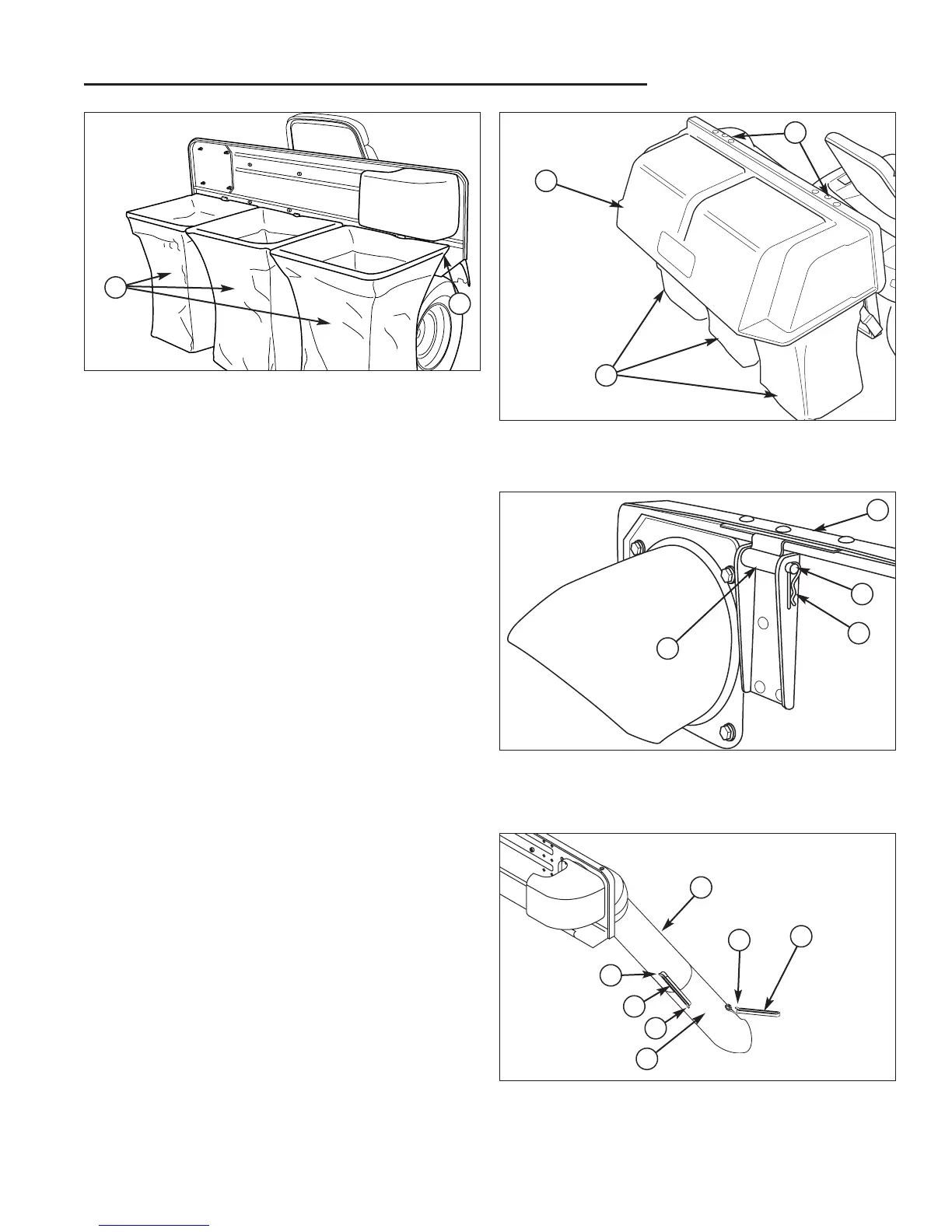

Figure 23. Install HInge Pins
A. Cover C. Hinge
B. Hinge Pin D. Hair Pin Clip
A
B
C
D
Figure 22. Install Cover
A. Cover C. Hinges
B. Bags
A
Figure 24. Assemble Tubes
A. Upper Tube C. “S” Hooks
B. Lower Tube D. Rubber Strap
A
B
C
D
C
B
3. Hook the bags (A, Figure 21) on the back plate.
4. Install the catcher cover (A, Figure 22 & 23) and
secure with the hinge pins (B) and hair pin clips (D).
NOTE: Push the hair pin clips all the way on or they will
be bent by the hinge when the cover is opened.
5. Assemble the upper tube (A, Figure 24) and lower-
tube (B) and attach them with a rubber strap (D).
Attach to the collector. Attach tubes to the turbo
blower with a rubber strap (D).
STORING THE GRASS CATCHER
Clean the grass catcher thoroughly using a mild deter-
gent (other products may damage the tube). Remove
any debris from the the screen on the underside of the
lid. The screen can be partially removed for easier clean-
ing.
If paint has been scratched on metal parts, touch up with
paint, or apply a thin film of oil to prevent corrosion.
Store in a dry area. Hang the catcher and catcher bags
to dry thoroughly before storing for a long period of time.
Always store away from moisture.
Figure 210. Bags
A. Bags
B. Back Plate
A
B
To Turbo
Blower
C
C
D
To Next Page
