Simplicity 560 - Belt Replacement

D.
E.
F.
Auger Drive Belt
Engine Pulley
Auger Pulley
G. Idler Pulley, Auger
H. Traction Pulley
I. Idler Pulley, Traction

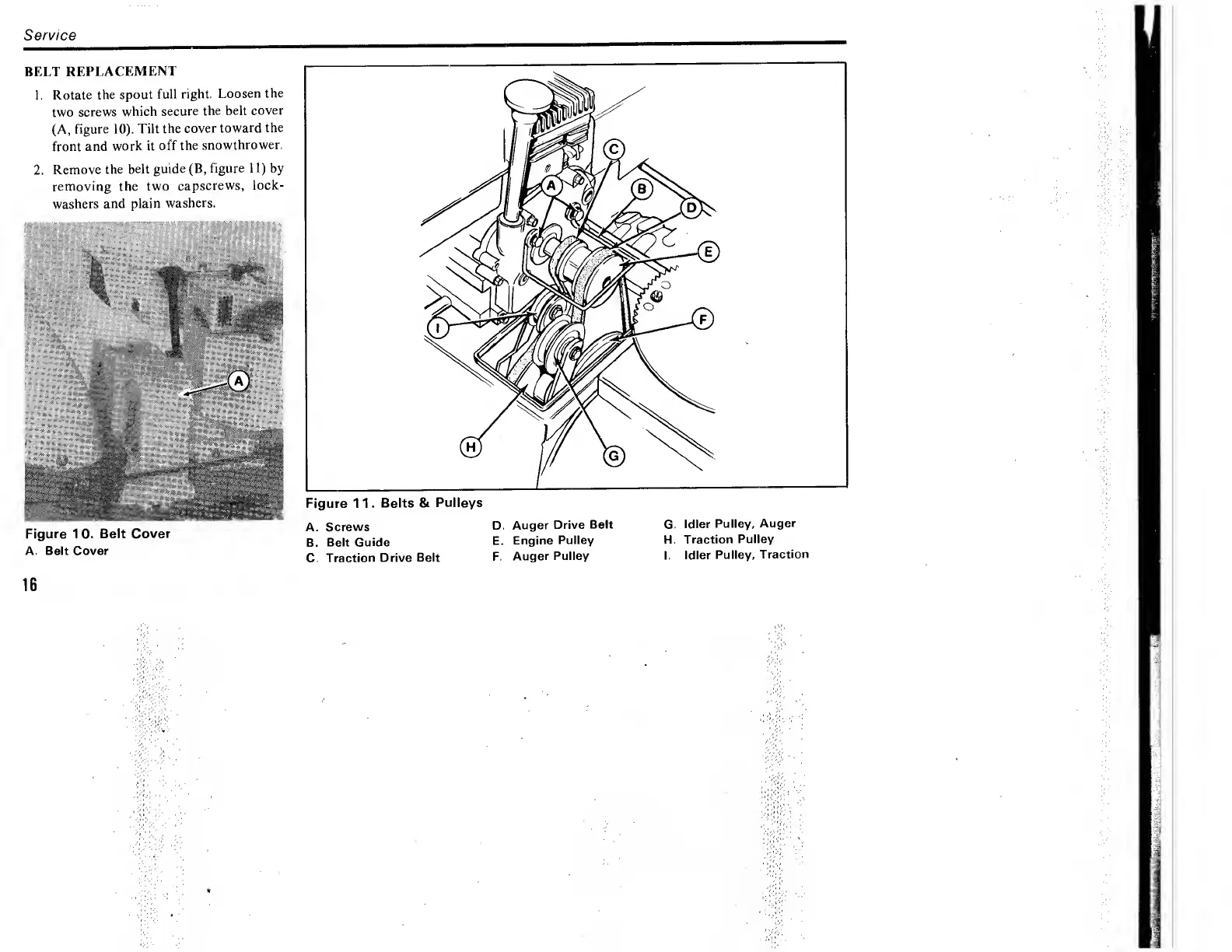

Figure 10. Belt Cover
A. Belt Cover
A.
B.
C
Screws
Belt Guide
Traction Drive Belt
Figure 11. Belts & Pulleys
Service
BELT REPLACEMENT
Rotate the spout full right. Loosen the
two screws which secure the belt cover
(A, figure 10). Tilt the cover toward the
front and work it off the snowthrower.
2. Remove the belt guide (B, figure 11) by
removing the two capscrews, lock-
washers and plain washers.
