Normal Care
A WARNING
Stop engine, disengage PTO, remove key, set parking
brake, and wait for moving parts to stop before
performing maintenance. Wait for engine to coo!
before working around engine.
DETERMINING OPERATING TIME
An hourmeter, located on the left side of the control panel,
indicates the operating time of the engine. Use this meter to
determine proper schedule for checks and service shown in
the Normal Care Schedule.
RAISING HOOD & SEAT DECK
To raise the hood, puli out on each side of the hood next to
the dash and lift up. To raise the seat deck, puli down on the
release (underneath rear left-hand footrest) with your left
hand, then lift the seat deck with your right hand. Refer to
figure 10.
NORMAL CARE SCHEDULE
A schedule for normal care is provided in the following
chart.

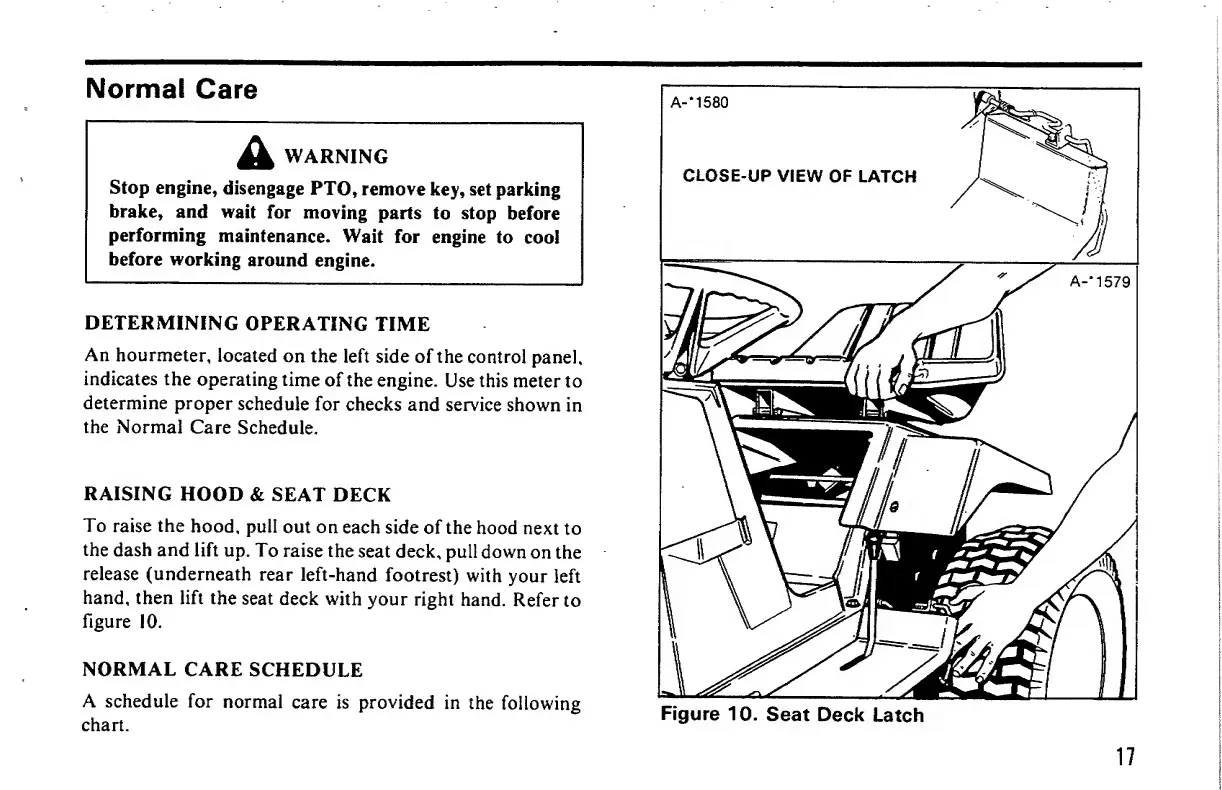

Figure 10. Seat Deck Latch
17
