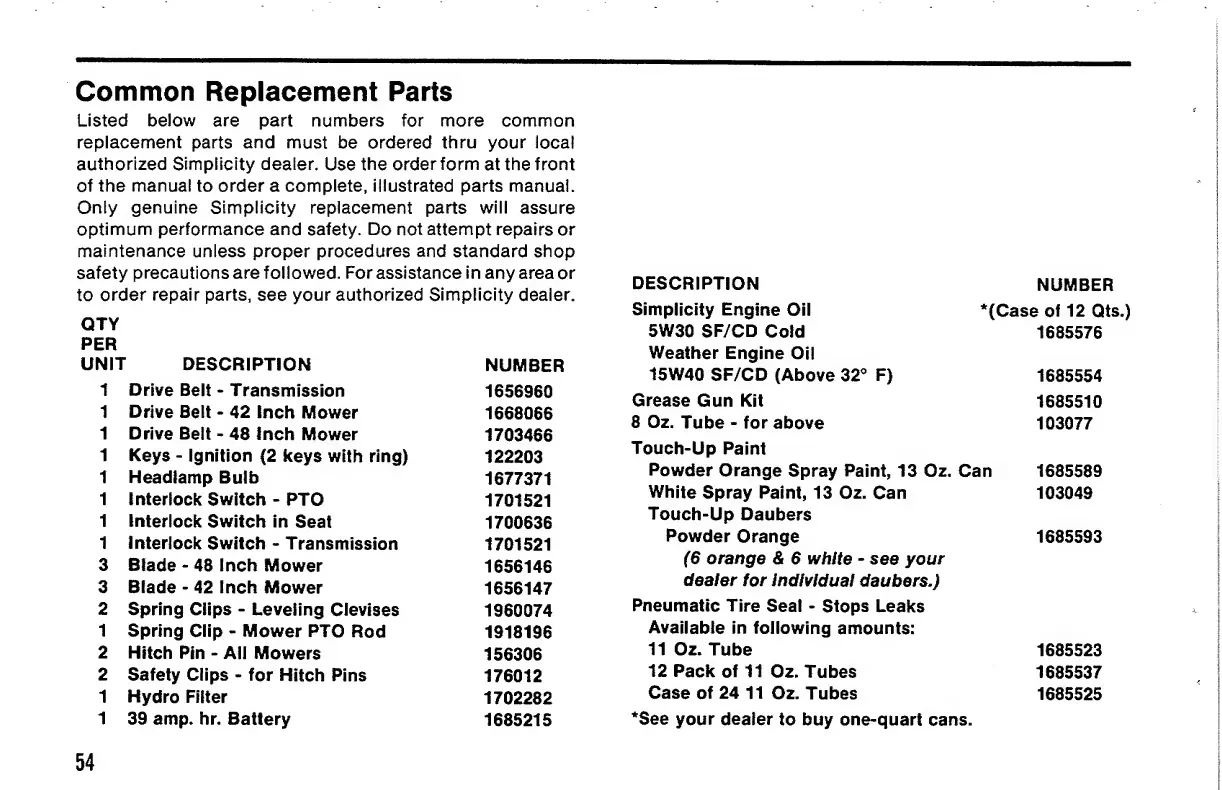

Common Replacement Parts
Listed below are part numbers for more common
replacement parts and must be ordered thru your local
authorized Simplicity dealer. Use the order form at the front
of the manual to order a complete, illustrated parts manual.
Only genuine Simplicity replacement parts will assure
optimum performance and safety. Do not attempt repairs or
maintenance unless proper procedures and standard shop
safety precautions are followed. For assistance in any area or
to order repair parts, see your authorized Simplicity dealer.
QTY
PER
UNIT DESCRIPTION
NUMBER
1
Drive Belt - Transmission
1656960
1 Drive Belt - 42 inch Mower
1668066
1
Drive Belt - 48 Inch Mower
1703466
1
Keys - Ignition (2 keys with ring)
122203
1 Headlamp Bulb
1677371
1
Interlock Switch - PTO
1701521
1
Interlock Switch in Seat
1700636
1
Interlock Switch - Transmission
1701521
3
Blade - 48 Inch Mower
1656146
3
Blade • 42 Inch Mower
1656147
2
Spring Clips - Leveling Clevises
1960074
1
Spring Clip - Mower PTO Rod
1918196
2
Hitch Pin - All Mowers
156306
2
Safety Clips - for Hitch Pins
176012
1
Hydro Filter
1702282
1 39 amp. hr. Battery
1685215
DESCRIPTION NUMBER
Simplicity Engine Oil *(Case of 12 Qts.)
5W30 SF/CD Cold 1685576
Weather Engine Oil
15W40 SF/CD (Above 32° F) 1685554
Grease Gun Kit 1685510
8 Oz. Tube - for above 103077
Touch-Up Paint
Powder Orange Spray Paint, 13 Oz, Can 1685589
White Spray Paint, 13 Oz. Can 103049
Touch-Up Daubers
Powder Orange 1685593
(6 orange & 6 white - see your
dealer for Individual daubers .)
Pneumatic Tire Seal - Stops Leaks
Available in following amounts:
11 Oz. Tube 1685523
12 Pack of 11 Oz. Tubes 1685537
Case of 24 11 Oz. Tubes 1685525
*See your dealer to buy one-quart cans.
54
