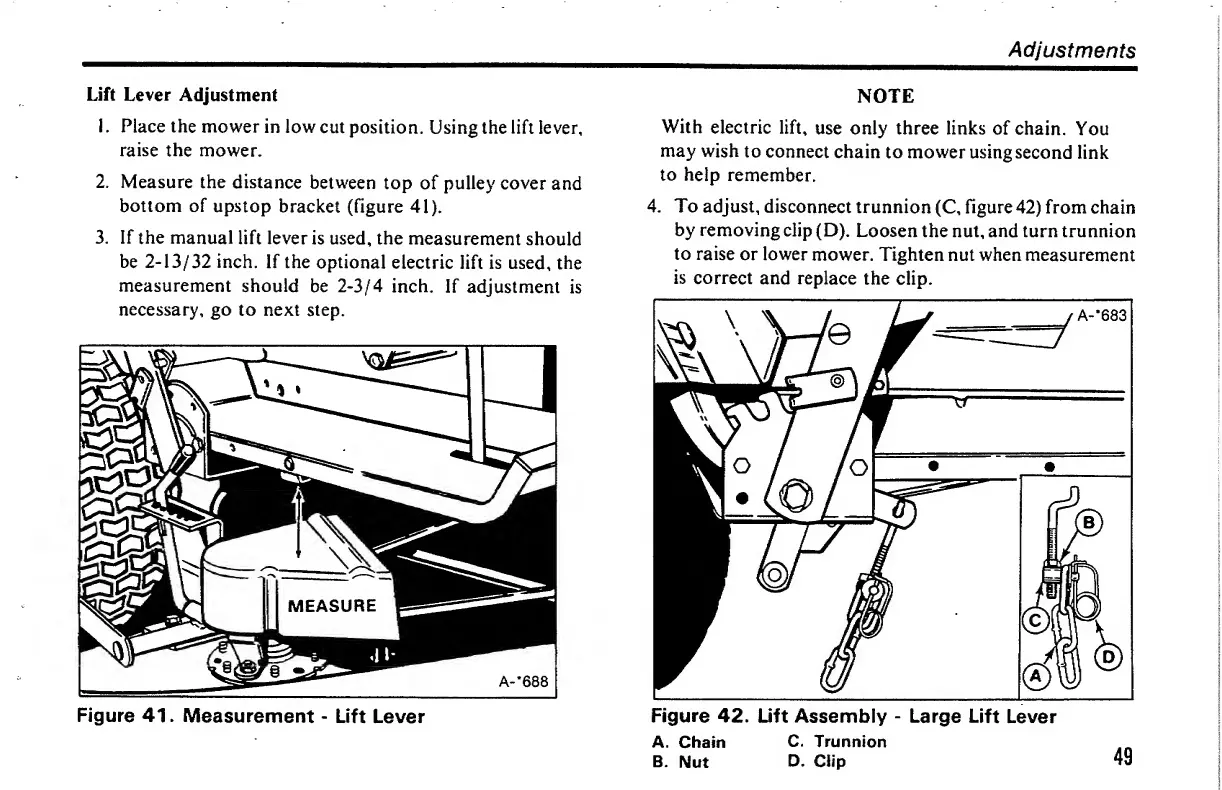

Lift Lever Adjustment
1. Place the mower in low cut position. Using the lift lever,
raise the mower.
2. Measure the distance between top of pulley cover and
bottom of upstop bracket (figure 41).
3. If the manual lift lever is used, the measurement should
be 2-13/32 inch. If the optional electric lift is used, the
measurement should be 2-3/4 inch. If adjustment is
necessary, go to next step.
Figure 41. Measurement - Lift Lever
Adjustments
NOTE
With electric lift, use only three links of chain. You
may wish to connect chain to mower using second link
to help remember.
4. T o adjust, disconnect trunnion (C, figure 42) from chain
by removing clip (D). Loosen the nut, and turn trunnion
to raise or lower mower. Tighten nut when measurement
is correct and replace the clip.
Figure 42. Lift Assembly - Large Lift Lever
A. Chain C. Trunnion
B. Nut D. Clip 49
