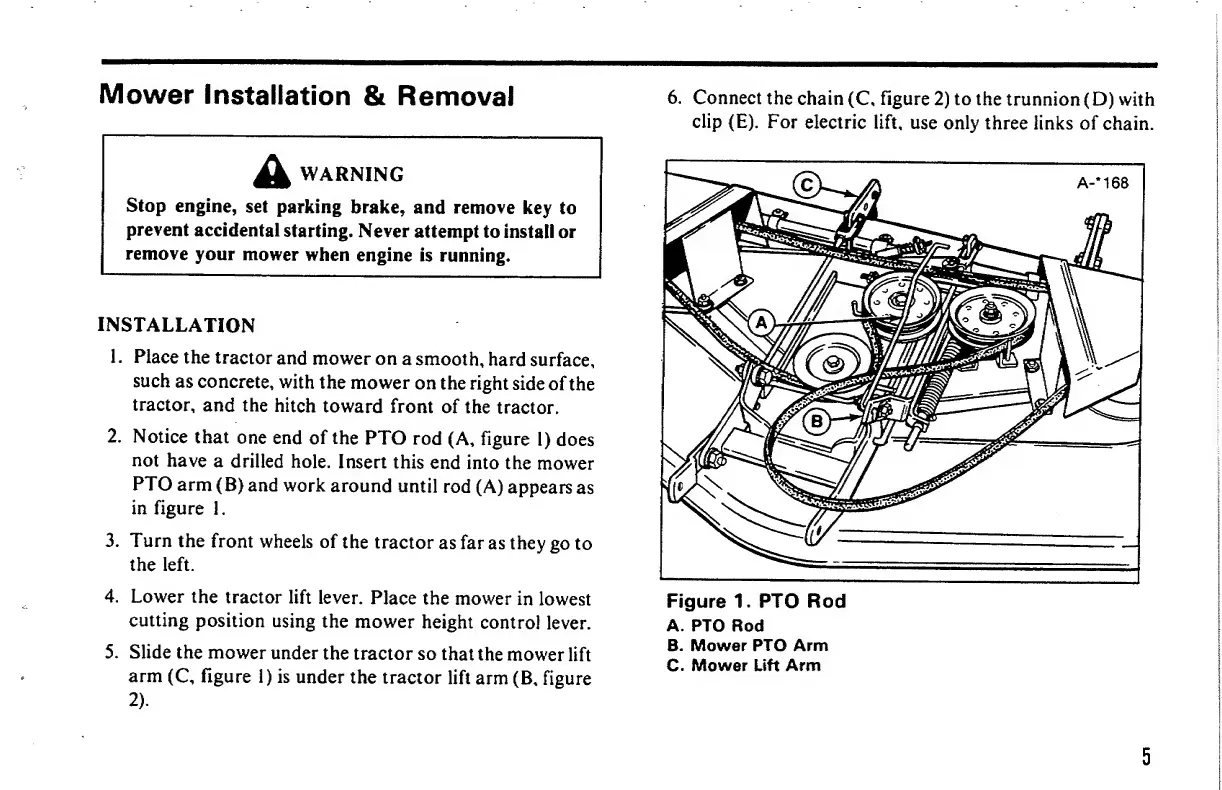

Mower
Installation
&
Removal
A
WARNING
Stop
engine,
set
parking
brake,
and
remove
key
to
prevent
accidental
starting.
Never
attempt
to
install
or
remove
your
mower
when
engine
is
running.
INSTALLATION
1.
Place
the
tractor
and
mower
on
a
smooth,
hard
surface,
such
as
concrete,
with
the
mower
on
the
right
side
of
the
tractor,
and
the
hitch
toward
front
of
the
tractor.
2.
Notice
that
one
end
of
the
PTO
rod
(A,
figure
I)
does
not
have
a
drilled
hole.
Insert
this
end
into
the
mower
PTO
arm
(B)
and
work
around
until
rod
(A)
appears
as
in
figure
1.
3.
Turn
the
front
wheels
of
the
tractor
as
far
as
they
go
to
the
left.
4.
Lower
the
tractor
lift
lever.
Place
the
mower
in
lowest
cutting
position
using
the
mower
height
control
lever.
5.
Slide
the
mower
under
the
tractor
so
that
the
mower
lift
arm
(C,
figure
1)
is
under
the
tractor
lift
arm
(B,
figure
2
).
6.
C
onnect
the
chain
(C,
figure
2)
to
the
trunnion
(D)
with
clip
(E).
For
electric
lift,
use
only
three
links
of
chain.
A.
PTO
Rod
B.
Mower
PTO
Arm
C.
Mower
Lift
Arm
5
