Simplicity GTH Series User Manual

Mower Installation & Removal

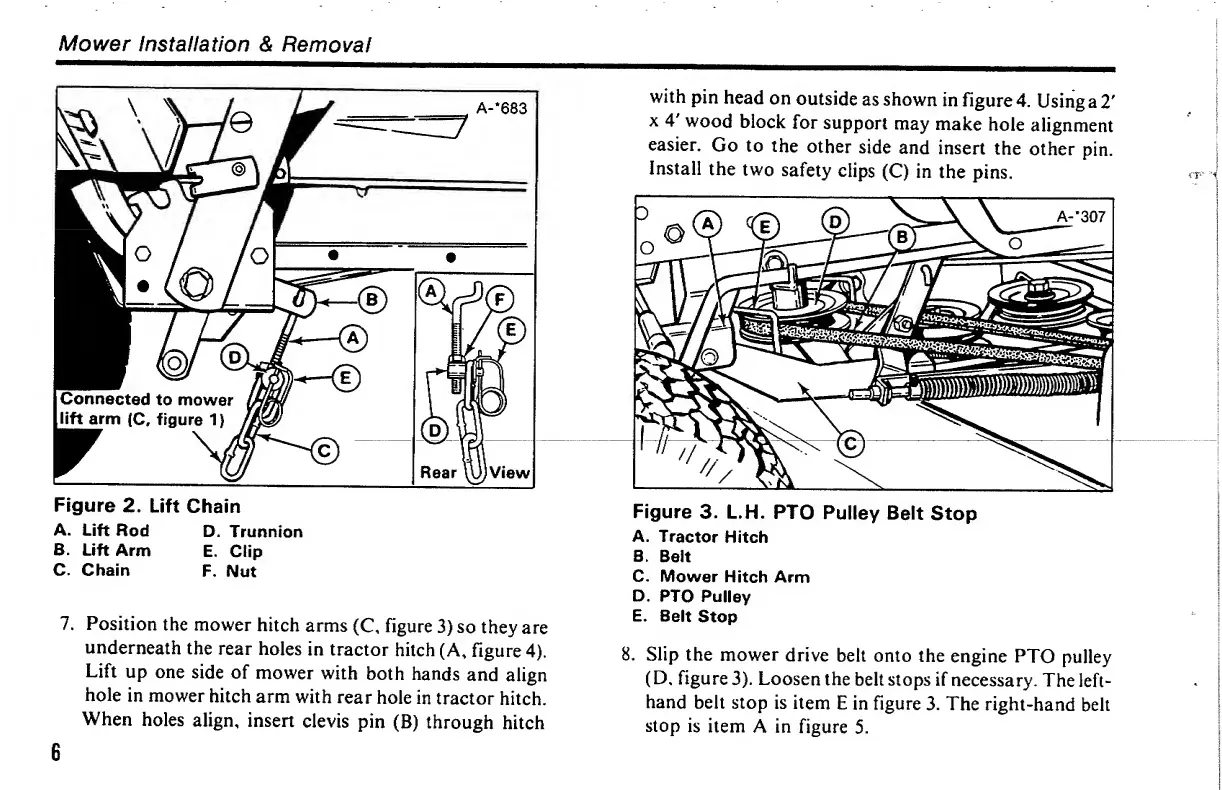

Figure 2. Lift Chain
A. Lift Rod D. Trunnion
B. Lift Arm E. Clip
C. Chain F. Nut
7. Position the mower hitch arms (C, figure 3) so they are
underneath the rear holes in tractor hitch (A, figure 4).
Lift up one side of mower with both hands and align
hole in mower hitch arm with rear hole in tractor hitch.
When holes align, insert clevis pin (B) through hitch
with pin head on outside as shown in figure 4. Using a 2'
x 4' wood block for support may make hole alignment
easier. Go to the other side and insert the other pin.
Install the two safety clips (C) in the pins.
Figure 3. L.H. PTO Pulley Belt Stop
A. Tractor Hitch
B> Belt
C. Mower Hitch Arm
D. PTO Pulley
E. Belt Stop
8. Slip the mower drive belt onto the engine PTO pulley
(D, figure 3). Loosen the belt stops if necessary. The left-
hand belt stop is item E in figure 3. The right-hand belt
stop is item A in figure 5.
