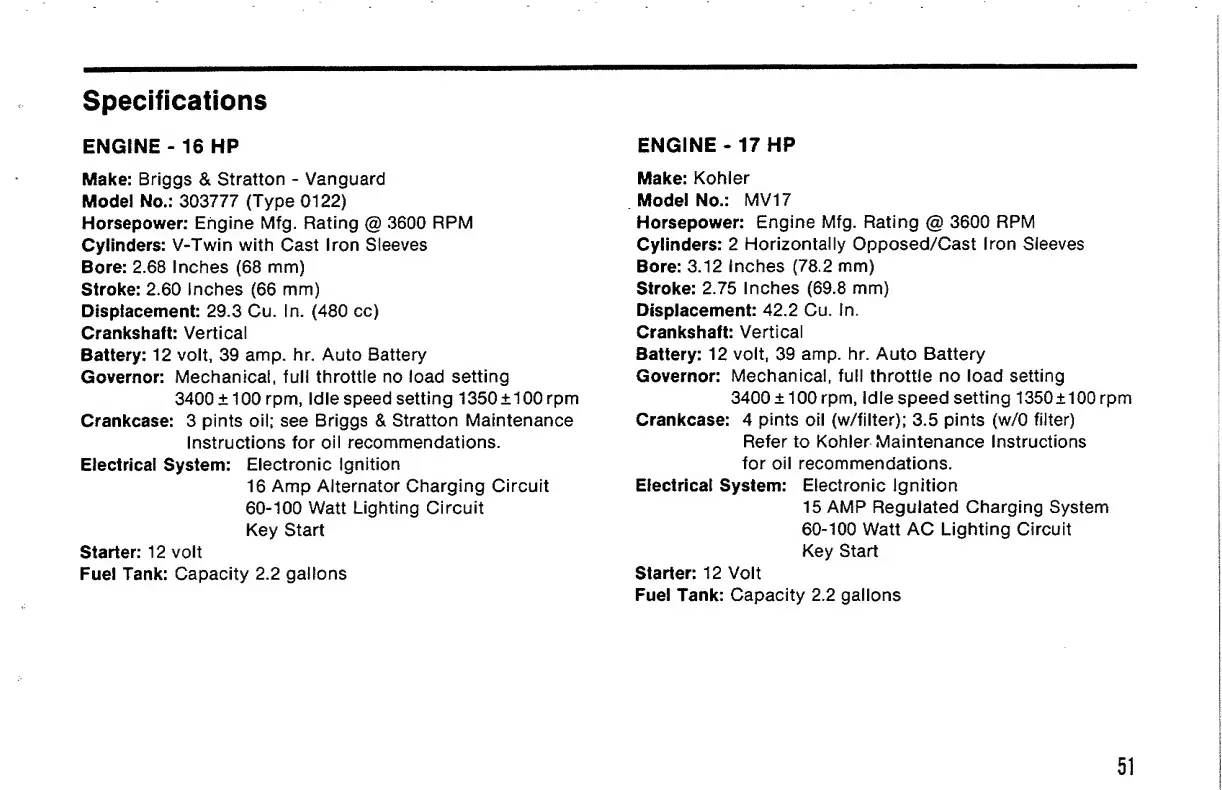

Specifications
ENGINE - 16 HP
Make: Briggs & Stratton - Vanguard
Model No.: 303777 (Type 0122)
Horsepower: Engine Mfg. Rating @ 3600 RPM
Cylinders: V-Twin with Cast iron Sleeves
Bore: 2.68 Inches (68 mm)
Stroke: 2.60 inches (66 mm)
Displacement: 29.3 Cu. In. (480 cc)
Crankshaft: Vertical
Battery: 12 volt, 39 amp. hr. Auto Battery
Governor: Mechanical, full throttle no load setting
3400±100 rpm, Idle speed setting 1350±100rpm
Crankcase: 3 pints oil; see Briggs & Stratton Maintenance
Instructions for oil recommendations.
Electrical System: Electronic Ignition
16 Amp Alternator Charging Circuit
60-100 Watt Lighting Circuit
Key Start
Starter: 12 volt
Fuel Tank: Capacity 2.2 gallons
ENGINE - 17 HP
Make: Kohler
Model No.: MV17
Horsepower: Engine Mfg. Rating @ 3600 RPM
Cylinders: 2 Horizontally Opposed/Cast Iron Sleeves
Bore: 3.12 Inches (78.2 mm)
Stroke: 2.75 Inches (69.8 mm)
Displacement: 42.2 Cu. In.
Crankshaft: Vertical
Battery: 12 volt, 39 amp. hr. Auto Battery
Governor: Mechanical, full throttle no load setting
3400± 100 rpm, Idle speed setting 1350H00 rpm
Crankcase: 4 pints oil (w/filter); 3.5 pints (w/0 filter)
Refer to Kohler Maintenance Instructions
for oil recommendations.
Electrical System: Electronic Ignition
15 AMP Regulated Charging System
60-100 Watt AC Lighting Circuit
Key Start
Starter: 12 Volt
Fuel Tank: Capacity 2.2 gallons
51
