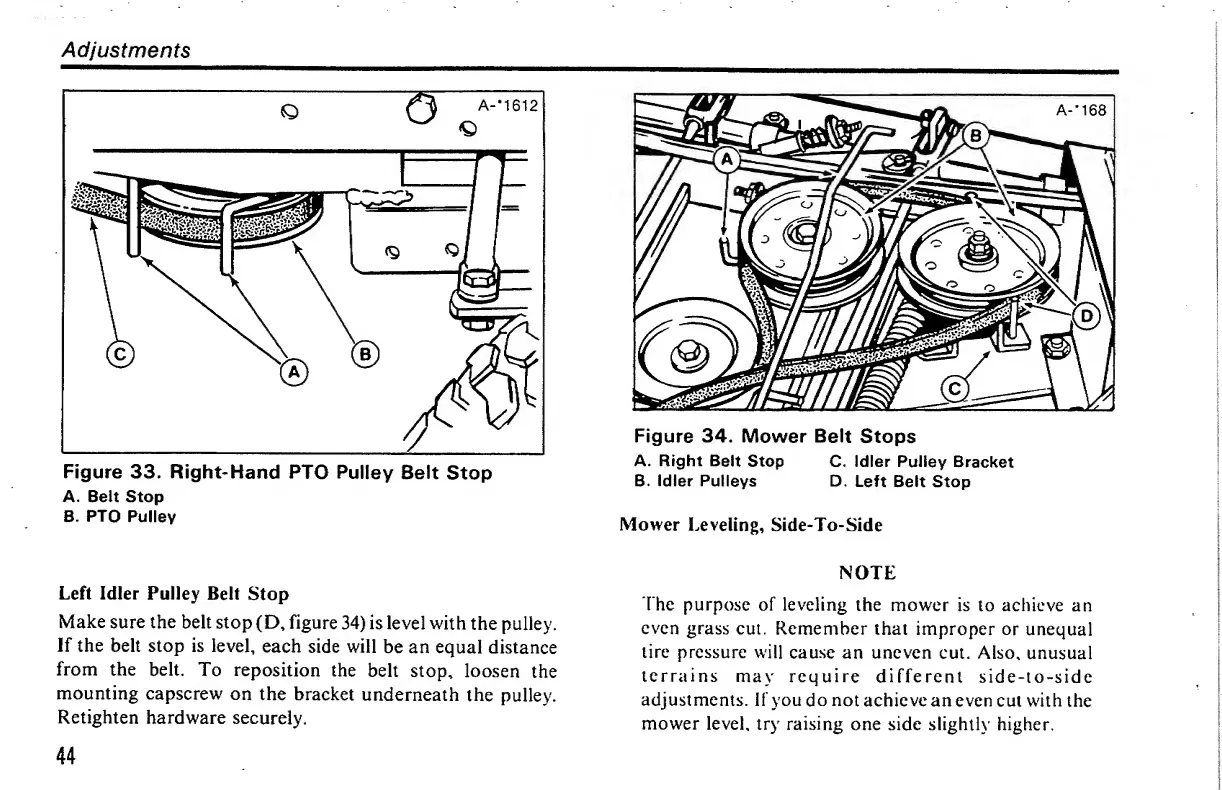

Figure 33. Right-Hand PTO Pulley Belt Stop
A. Belt Stop
B. PTO Pulley
Left Idler Pulley Belt Stop
Make sure the belt stop (D, figure 34) is level with the pulley.
If the belt stop is level, each side will be an equal distance
from the belt. To reposition the belt stop, loosen the
mounting capscrew on the bracket underneath the pulley.
Retighten hardware securely.
44
Figure 34. Mower Belt Stops
A. Right Beit Stop C. Idler Pulley Bracket
B. Idler Pulleys D. Left Belt Stop
Mower Leveling, Side-To-Side
NOTE
The purpose of leveling the mower is to achieve an
even grass cut. Remember that improper or unequal
tire pressure will cause an uneven cut. Also, unusual
terrains may require different side-to-side
adjustments. If you do not achieve an even cut with the
mower level, try raising one side slightly higher.
