Simplicity GTH Series User Manual

Adjustments
WARNING
To avoid accidental starting during leveling check,
remove the ignition key and remove both spark plug
wires and fasten them away from the spark plugs.
NOTE
Tractor and mower must be on level surface. The front
tires should point straight forward.
1. To check for side-to-side leveiness on the mower,
disengage the PTO and position the blades so they are
pointing side-to-side.
2. Engage the PTO.
3. Measure the distance from the outside tips of the blade
to the ground, if the difference between the two
measurements is less than 1 /8 inch (3 mm), the mower is
level. If not, proceed with next steps.

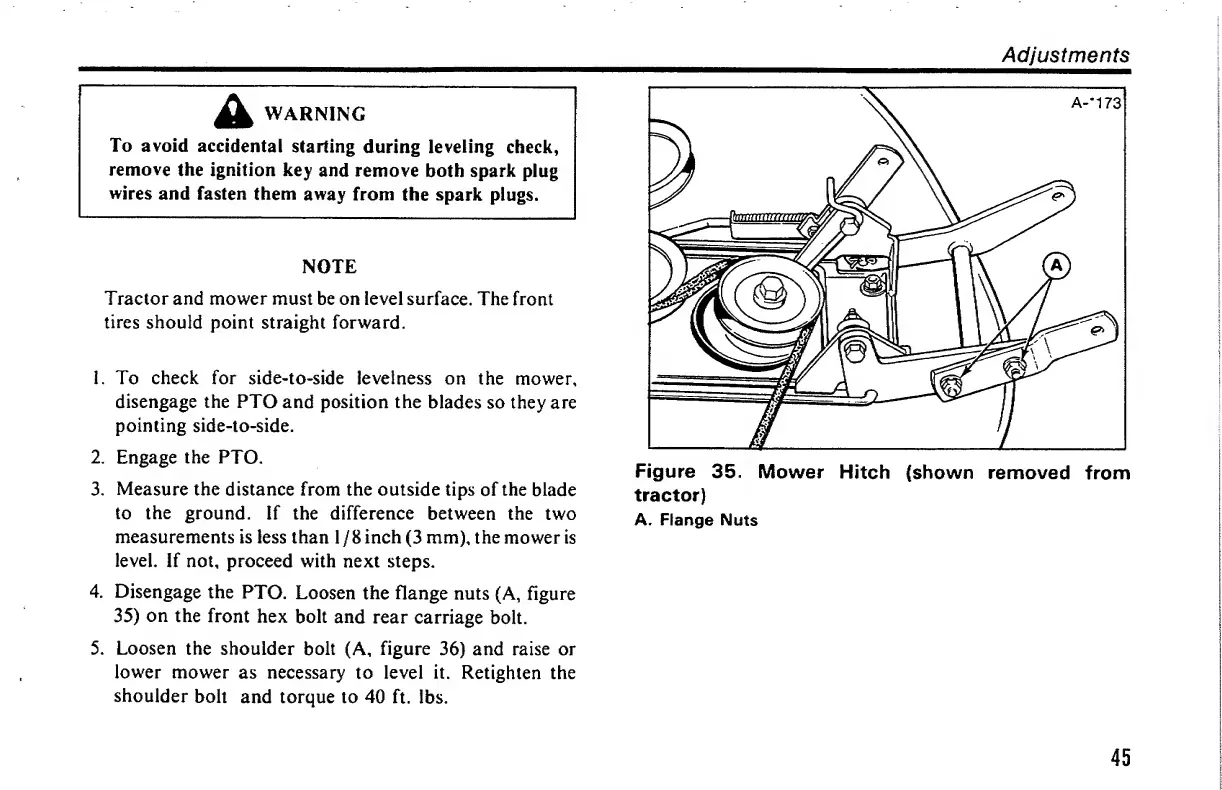

4. Disengage the PTO. Loosen the flange nuts (A, figure
35) on the front hex bolt and rear carriage bolt.
5. Loosen the shoulder bolt (A, figure 36) and raise or
lower mower as necessary to level it. Retighten the
shoulder bolt and torque to 40 ft. lbs.
tractor)
A. Flange Nuts
45
