Introduction

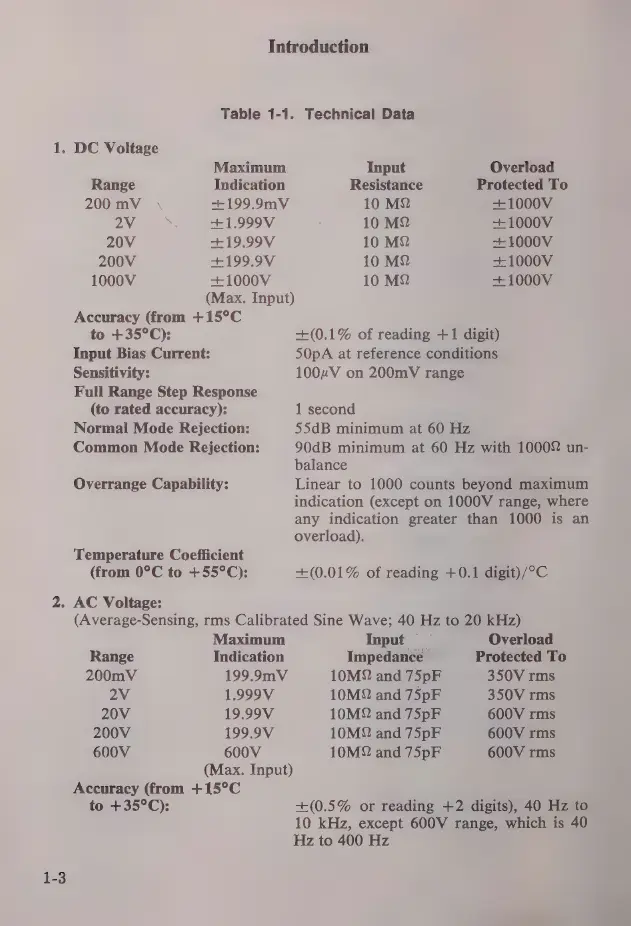

Table 1-1. Technical Data
. DC Voltage
Maximum Input Overload
Range Indication Resistance Protected To
200 mV +199.9mV 10 MQ +1000V
2V +1.999V 10 MQ +1000V
20V == 1999) 10 M2 +1000V
200V +199.9V 10 M9 +1000V
1000V +1000V 10 M9 +1000V
(Max. Input)
Accuracy (from +15°C
to +35°C): +(0.1% of reading +1 digit)
Input Bias Current: 50pA at reference conditions
Sensitivity: 100zV on 200mV range
Full Range Step Response
(to rated accuracy): 1 second
Normal Mode Rejection: 55dB minimum at 60 Hz
Common Mode Rejection: 90dB minimum at 60 Hz with 10000 un-
balance
Overrange Capability: Linear to. 1000 counts beyond maximum
indication (except on 1000V range, where
any indication greater than 1000 is an
overload).
Temperature Coefficient
(from 0°C to +55°C): +(0.01% of reading +0.1 digit)/°C
. AC Voltage:
(Average-Sensing, rms Calibrated Sine Wave; 40 Hz to 20 kHz)
Maximum Input Overload
Range Indication Impedance ` Protected To
200mV 199.9mV 10M2 and 75pF 350V rms
2V 1.999V 10M2 and 75pF 350V rms
20V 19.99V 10M2 and 75pF 600V rms
200V 199.9V 10M2 and 75pF 600V rms
600V 600V 10M2 and 75pF 600V rms
(Max. Input)
Accuracy (from +15°C
to +35°C): +(0.5% or reading +2 digits), 40 Hz to
10 kHz, except 600V range, which is 40
Hz to 400 Hz
