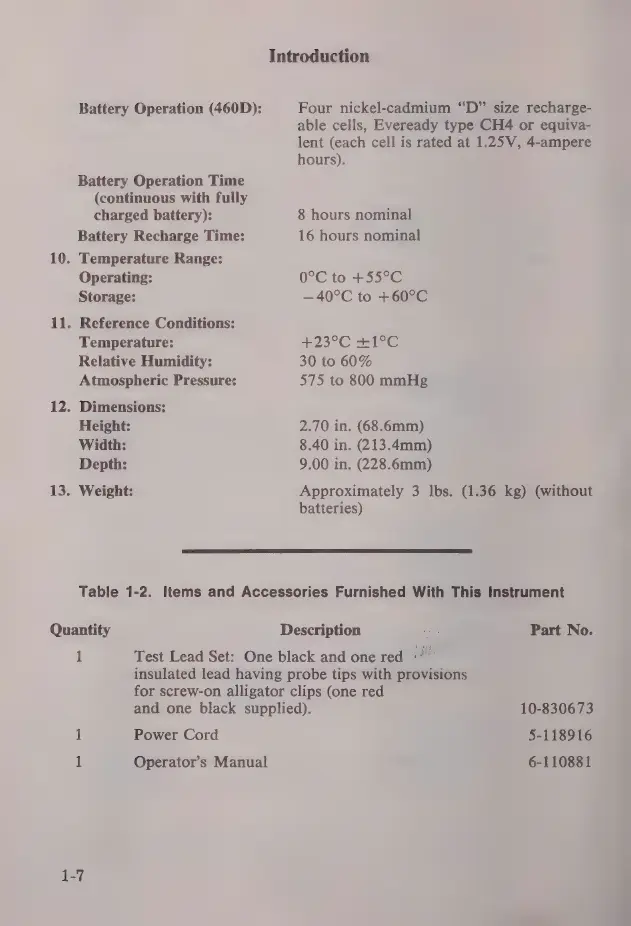

Simpson 460 4 Series - Page 16

10.
11.
12.
13.
Battery Operation (460D):
Battery Operation Time
(continuous with fully
charged battery):
Battery Recharge Time:
Temperature Range:
Operating:
Storage:
Reference Conditions:
Temperature:
Relative Humidity:
Atmospheric Pressure:
Dimensions:
Height:
Width:
Depth:
Weight:
Introduction
Four nickel-cadmium “D” size recharge-
able cells, Eveready type CH4 or equiva-
lent (each cell is rated at 1.25V, 4-ampere
hours).
8 hours nominal
16 hours nominal
0°C to 475522
—40°C to +60°C
23e Io
30 to 6046
575 to 800 mmHg
2.70 in. (68.6mm)
8.40 in. (213.4mm)
9.00 in. (228.6mm)
Approximately 3 lbs. (1.36 kg) (without
batteries)
Table 1-2. Items and Accessories Furnished With This Instrument
Quantity Description Part No.
1 Test Lead Set: One black and one red ^"
insulated lead having probe tips with provisions
for screw-on alligator clips (one red
and one black supplied). 10-830673
1 Power Cord 5-118916
1 Operator’s Manual 6-110881
1-7
