down! Level the sensor as close to horizontal as possible.
Use the supplied mounting kit and drill holes through the
centre of the slots.
Connect the compass to an available SimNet connector in
the SimNet “backbone”.
2.11 R3000X Remote Control
installation
R3000X should be mounted in the supplied bracket that
can be fixed by four mounting screws. The unit is
weather proof and can be mounted outdoor.
Autopilot ComputerR3000X
REMOTE
LAMP
YELLOW
GRE
EN
RED
BLUE
STBD
PORT
GND

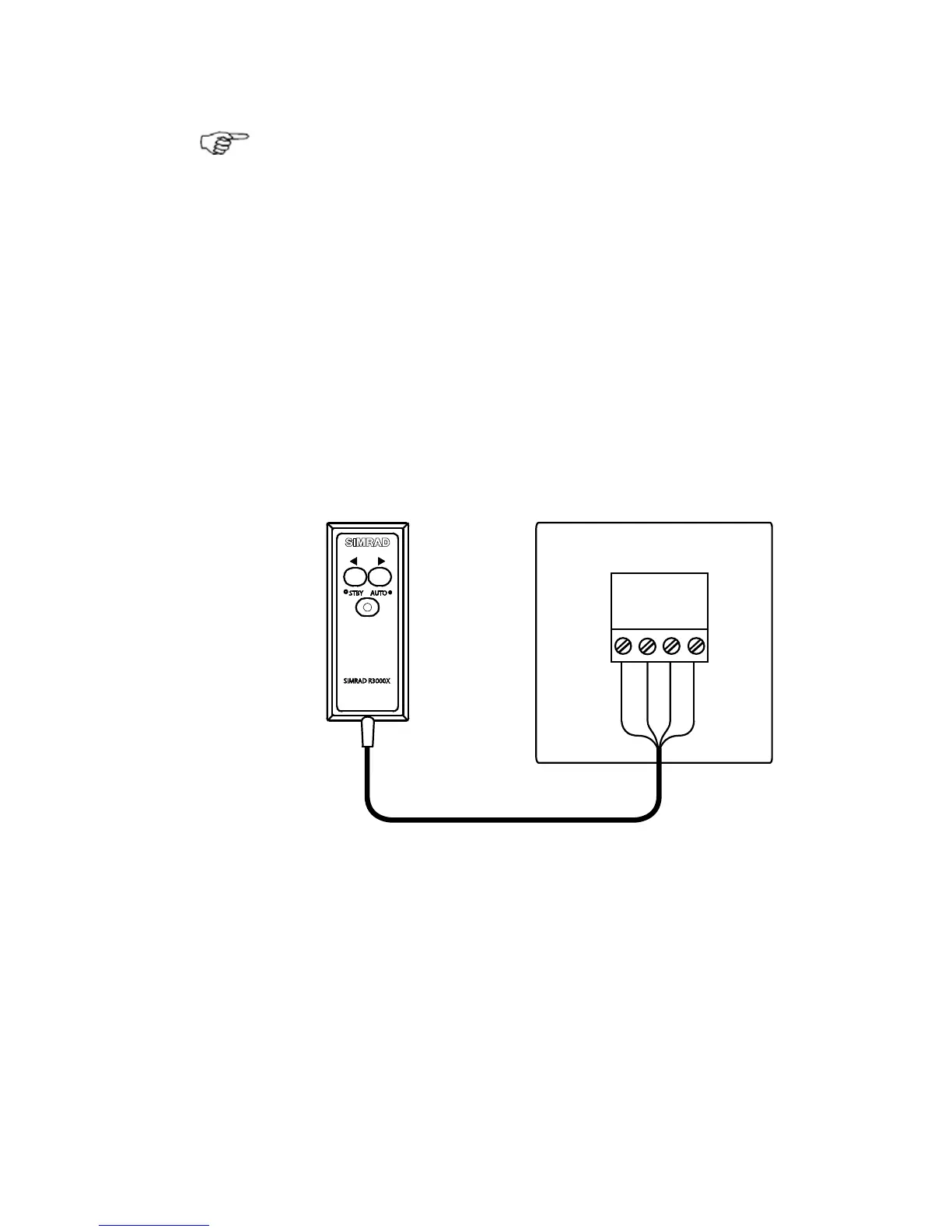

Figure 2-18 R3000X connection
2.12 JS10 Joystick
Refer to separate installation instructions supplied with
the JS10 Joystick.
