Simrad AP70 User Manual

52 |

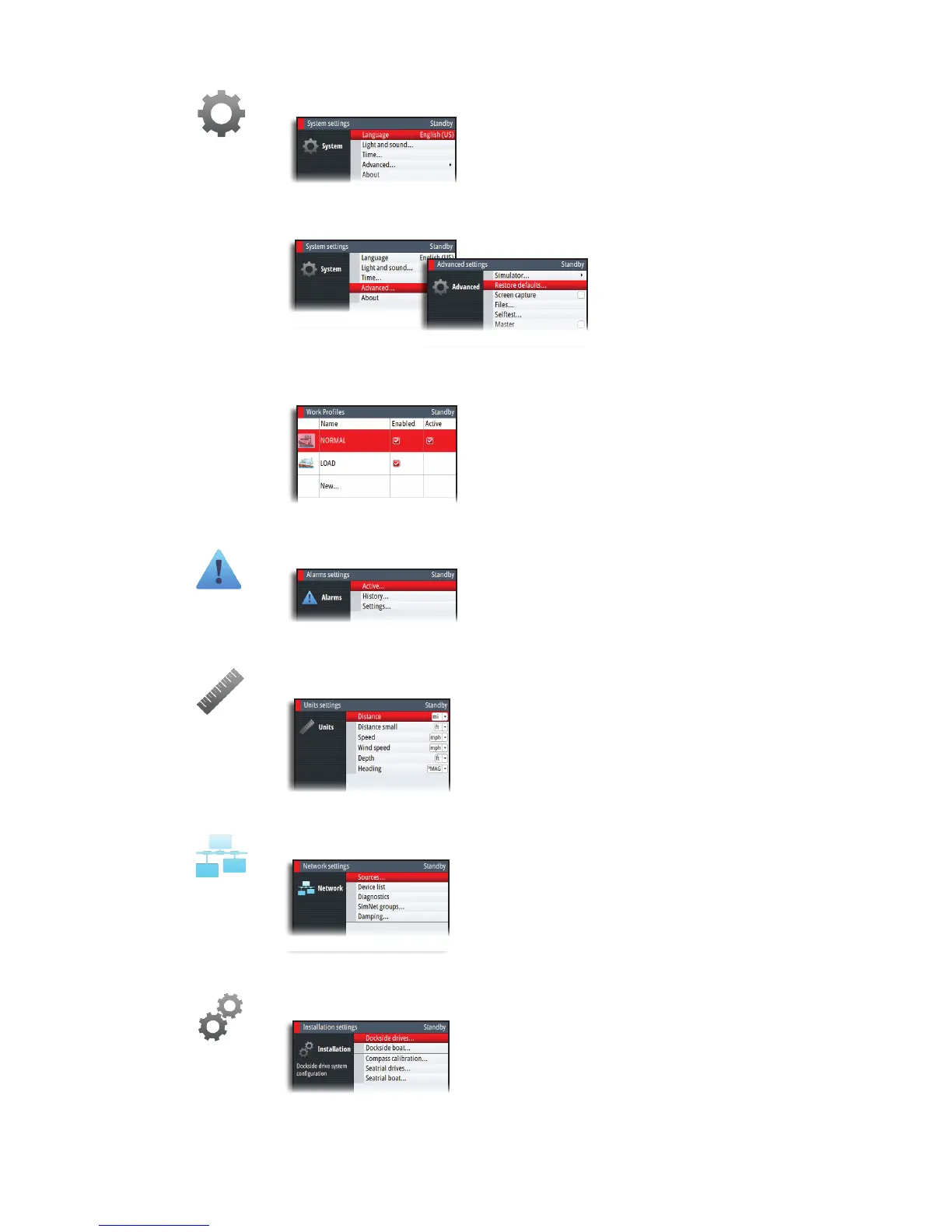

Menu overview | AP70/AP80 Operator Manual
System
User settings that have not any affect on autopilot
performance.
Advanced system settings
Work proles
Used for creating and managing the vessel’s work profiles.
Described in “Work profile setup” on page 33.
Alarms
Alarm listings and settings.
Described in “The Alarm dialog” on page 41.
Units
Units of measure used on display, in dialogs and menus.
Network
List of devices connected to the CAN bus network.
Used for setup, diagnostics and configuration.
See “System configuration” on page 53.
Installation
Includes dockside and seatrial calibrations.
See “System configuration” on page 53.

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
