Simrad AP70 User Manual

| 55
System conguration | AP70/AP80 Operator Manual

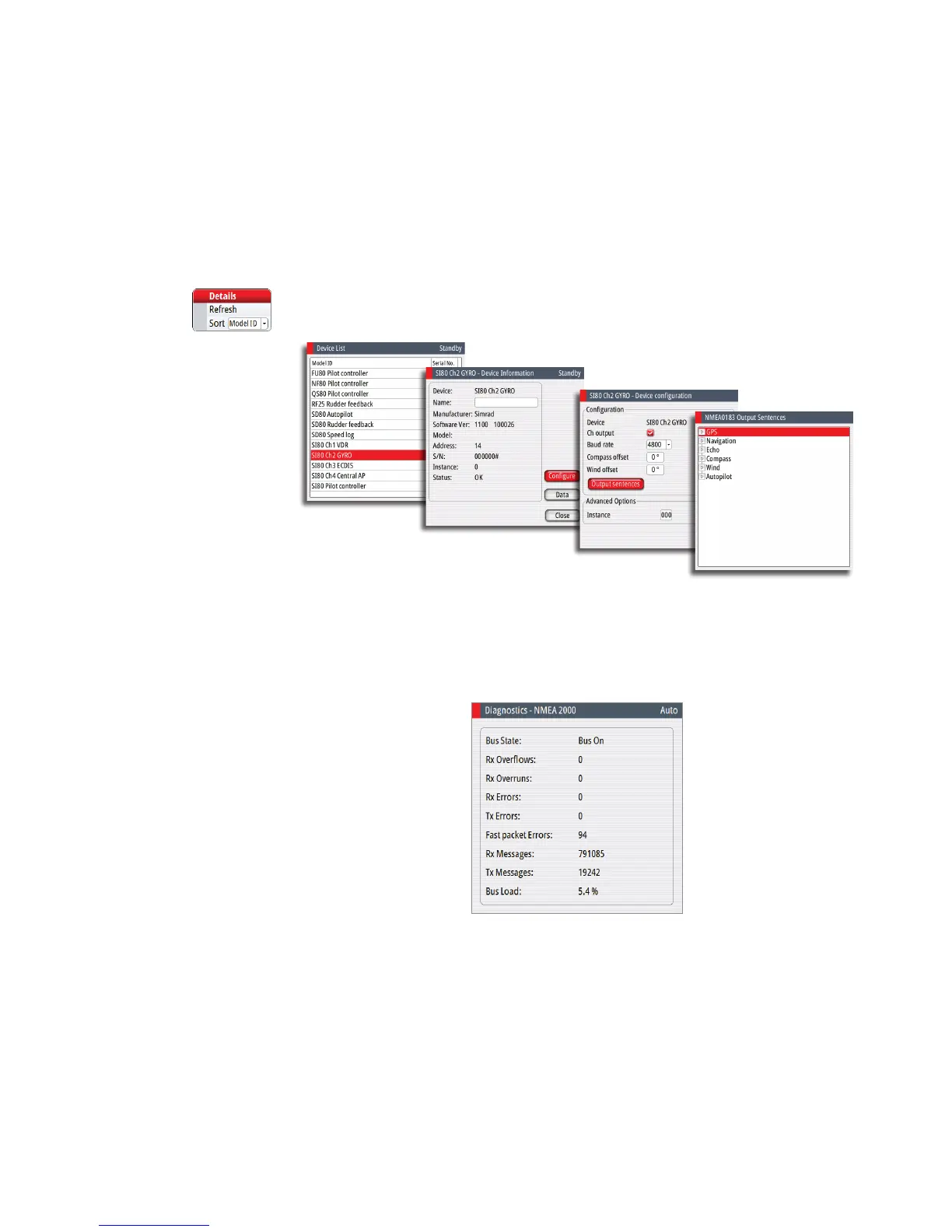

Device list
From the device list you can:
- list all of the active SimNet and NMEA 2000 devices on the network, showing model
description and serial number. Devices can be sorted by model ID or by serial number
- display information relating to a device such as, name, manufacturer, software version,
instance, status
- give the device a logical name relevant to the user
- see data coming from the device
- get access to configuration page for the device
• Press the MENU key to sort the device list
• Press the MENU key, the STBD key or the rotary knob to see selected device details.
¼ Note: The graphics show gyro input on an SI80 board. Device details and options depends on
data type.
Diagnostics
The diagnostic page shows details for the NMEA 2000/CAN bus network.

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
