Electrical connections
The AIS transceiver has the following electrical connections:
• Power supply
• Two independent NMEA 0183 data ports for connection to chart-
plotters and other NMEA 0183 compatible equipment
• USB port for connection to a PC or Mac
• External switch input for silent mode control
• NMEA 2000 port for connection to NMEA 2000 compatible equip-
ment.
In addition, there are two other connections for the VHF antenna
and the external GPS antenna. Figure 3 shows an overview of the
electrical connections to the AIS transceiver.

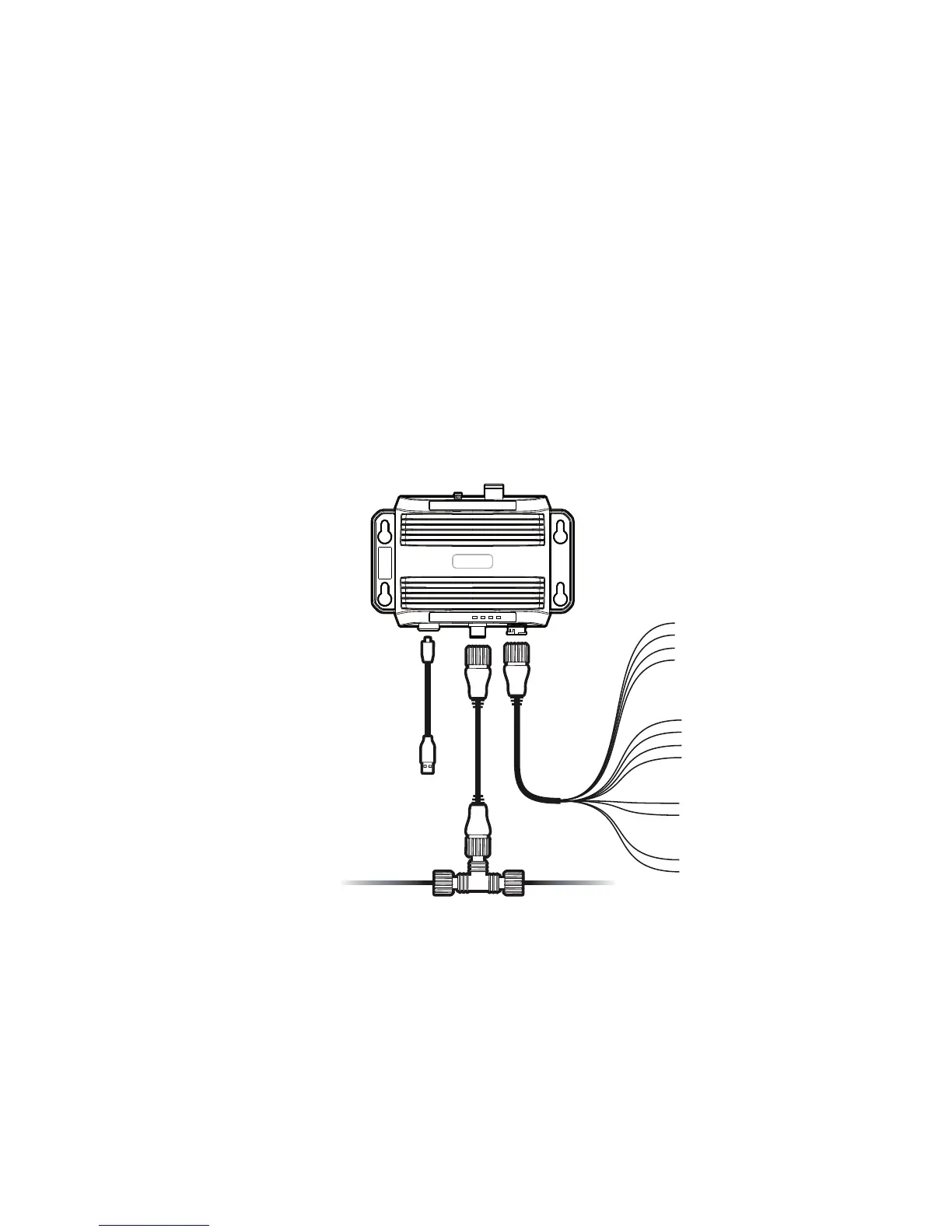

Fig. 3 Electric connections
NMEA 2000
USB
Chartplotter
Power in
Switch
NMEA0183
device
NAIS-500
Figure 3 Electrical connections to the AIS transceiver
