Installation | NAIS-500 User Manual
Step 3 - Connecting the VHF antenna
Route the cable from the VHF antenna to the AIS transceiver and
connect to the VHF connector on the AIS transceiver as shown in
Figure 9.
GPS Antenna
VHF Antenna

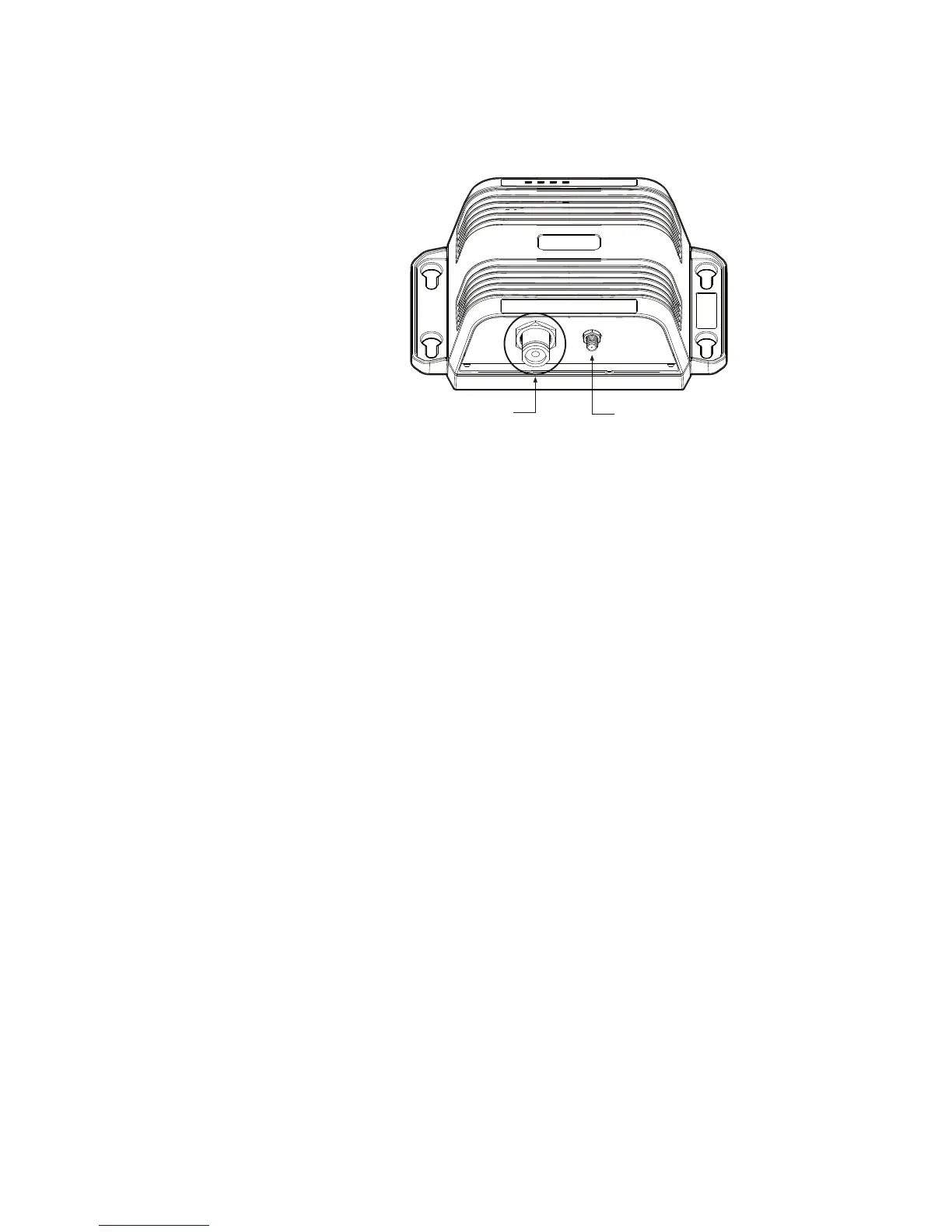

Figure 9 Position of the VHF antenna connector
A standard marine band VHF antenna or AIS antenna should be used
with the AIS transceiver. The connector type on the AIS transceiver
is SO239. Your chosen VHF antenna requires a PL259 connector to
mate with this. If your VHF antenna does not use this type of connec-
tor, please contact your dealer for details of available adaptors.
