Software setup | NSO-II Installation Manual
Serial port setup

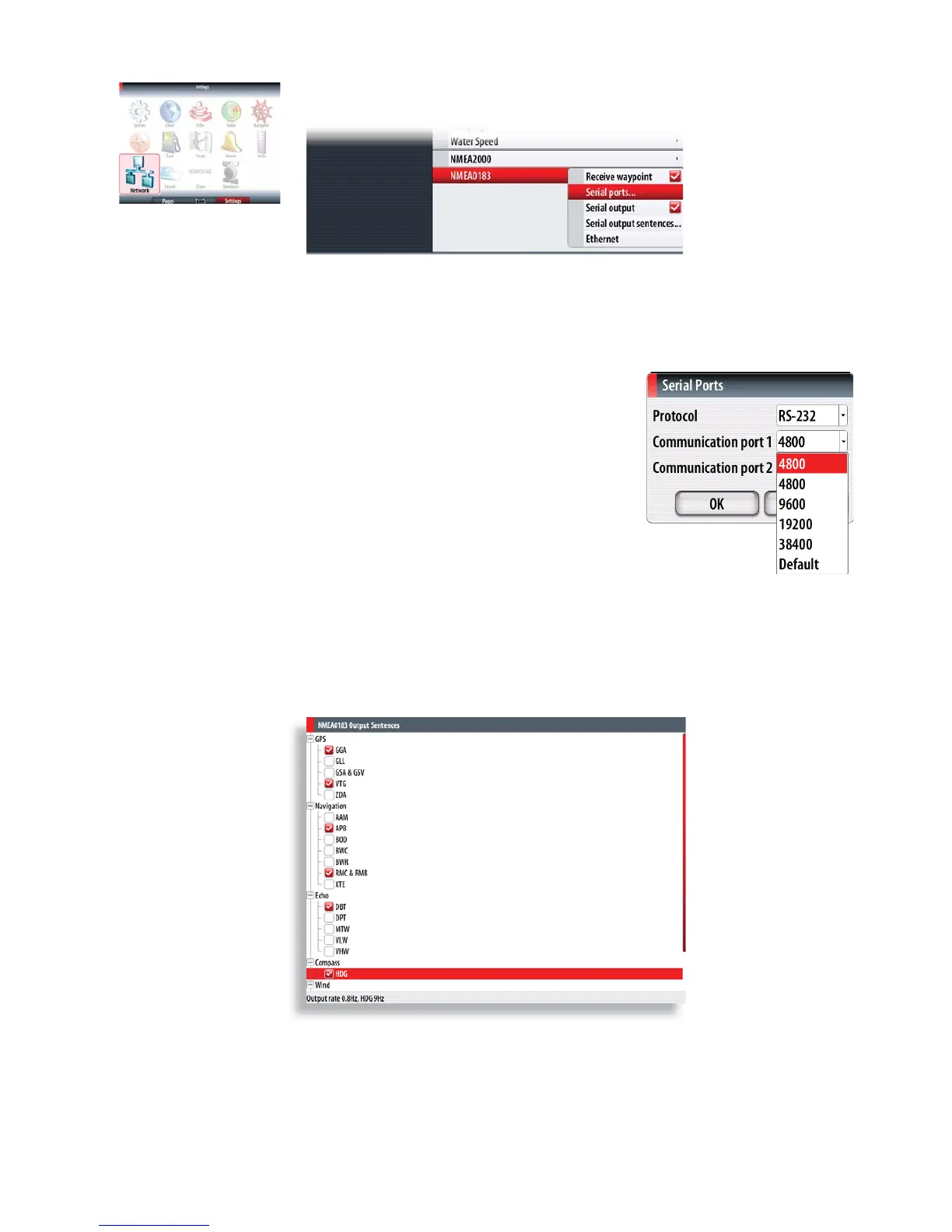

NMEA 0183 setup is done from the Network Settings page.
Receive waypoint
Select this option to allow device capable of creating and exporting waypoints via NMEA
0183 to transfer directly to the NS0-2.
Serial Ports
This should be set according to correspond with devices
connected to the NMEA 0183 input and output. Each
Coomunication Port input and output (Tx, Rx) always use
the same standard.
• Protocol: Set to RS232 or NMEA 0183
• Communication Port 1: 4800 through to 38400 baud
• Communication Port 2: 4800 through to 115200 baud
¼ Note: AIS transponders typically operate at NMEA 0183-
HS (high speed), and will require the baud rate to be set
to 38,400.
Serial Output
Selection will determine the whether data is output via Tx lines.
Serial Output Sentences
To enable data output, fi rst enable the ‘Serial output’ option, and then select which sentences
the NSO-II needs to transmit to other devices from the ‘Serial output sentences’ list.
Only a select list of the most commonly used sentences are enabled by default.
