Simrad NSO-II Installation Manual

| 5
NSO-II Overview | NSO-II Installation Manual

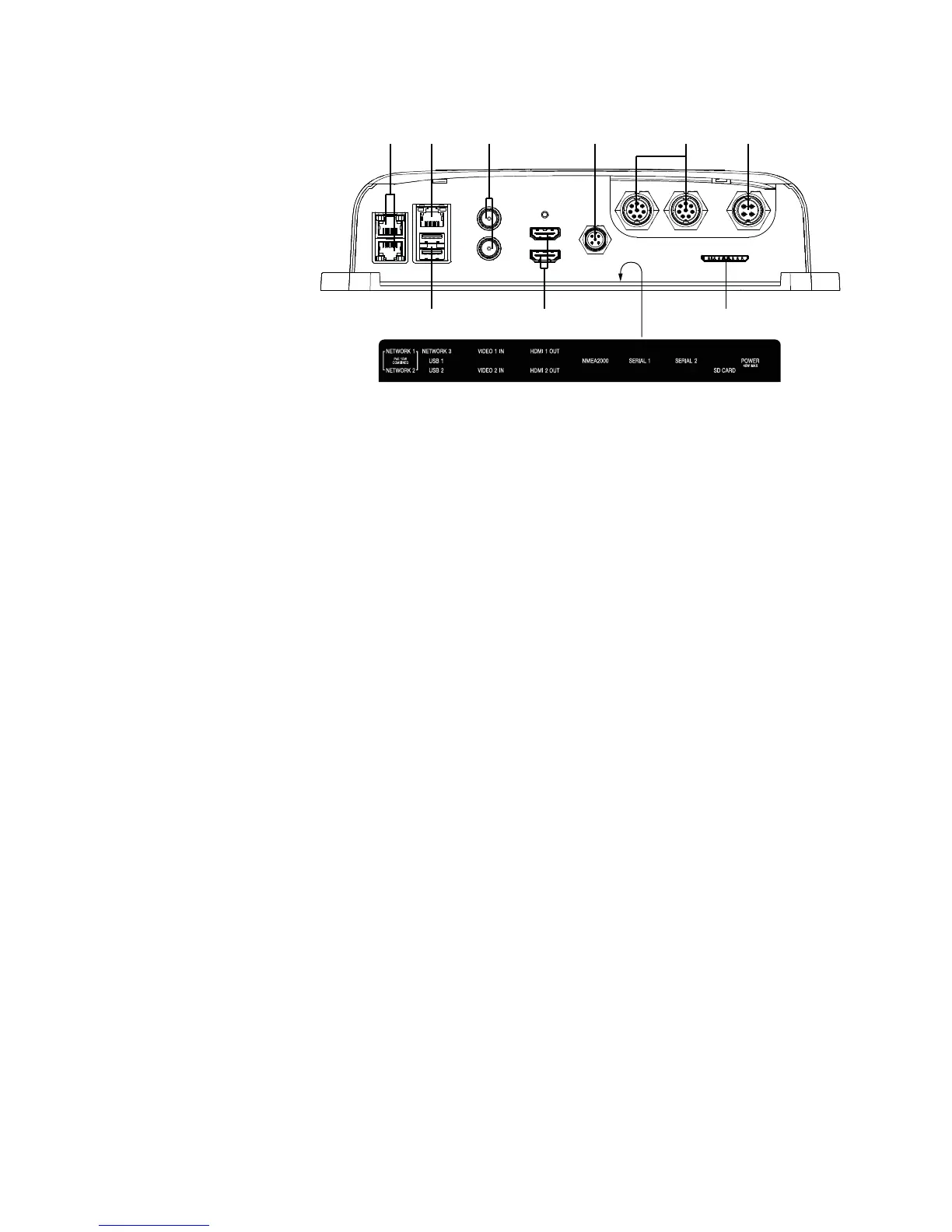

NSO-II Marine Processor Box
12
3
4
5 6
7
89
Key Description
1 Ethernet Network ports with PoE (2x)
2 Ethernet Network port (1x)
3 Video Input BNC sockets (2x)
4 NMEA 2000 data port
5 NMEA 0183 & RS422 (2x)
6 Power connector
7 USB ports (2x)
8 HDMI sockets (2x)
9 SD Card slot
NSO-II_IM_EN_988-10392-001.indd 5 9/07/2013 3:52:43 p.m.

Simrad NSO-II Specifications

General

Brand	Simrad
Model	NSO-II
Category	Marine Equipment
Language	English
