Simrad NSX Installation Manual

16

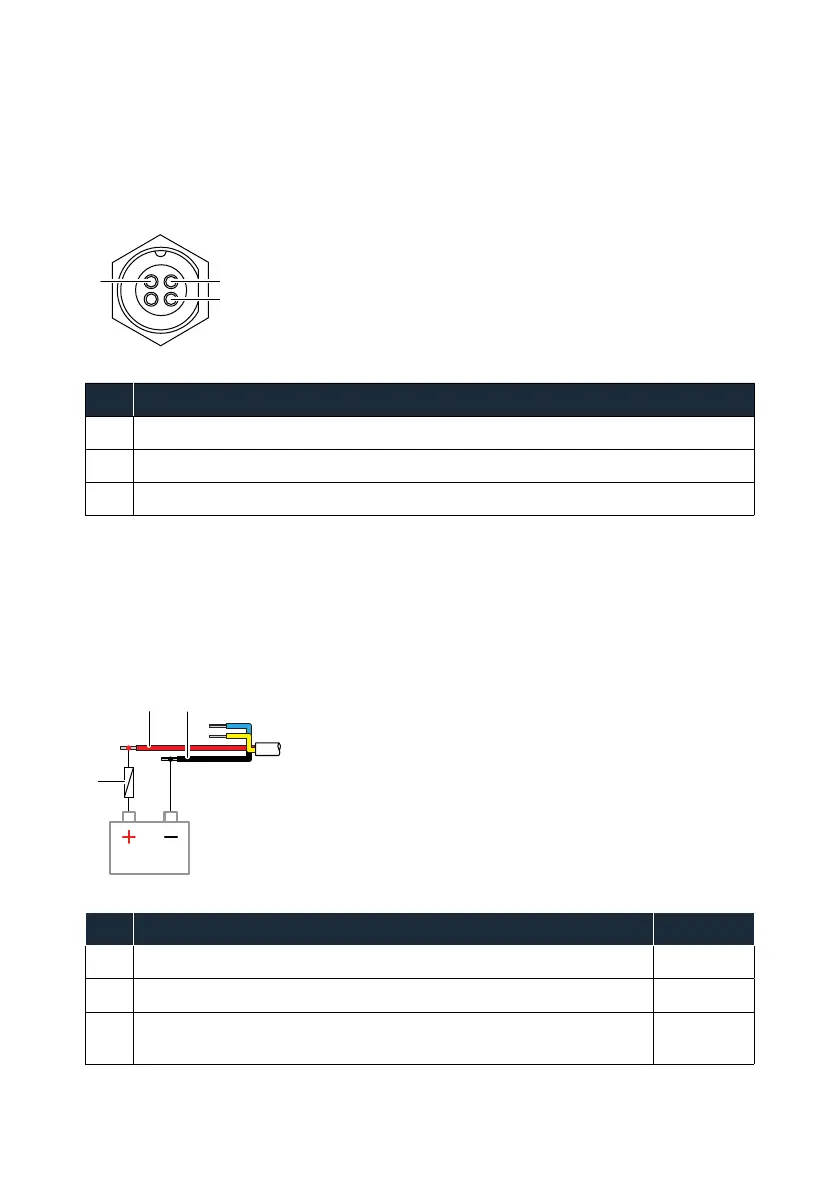

Power and power control
The power connector is used for power control.
Power connector details
Unit socket (male)
2
31
Pin Purpose
1 DC negative
2 Power control
3 + 12 V DC
Power connection
The unit is designed to be powered by 12 V DC.
It is protected against reverse polarity, under voltage and over voltage (for a limited duration).
A fuse or circuit breaker should be tted to the positive supply. For the recommended fuse rating,
refer to the Specications section of this manual.
C
AB
Key Purpose Color
A + 12 V DC Red
B DC negative Black
C Fuse (for the recommended rating, refer to the Specications section of
this manual)

Simrad NSX Specifications

General

Wi-Fi	Yes
Bluetooth	Yes
Touchscreen	Yes
GPS	Yes
NMEA 2000	Yes
Cartography	C-MAP, Navionics
Waterproof Rating	IPX6
Operating Temperature	-15°C to +55°C
