Simrad NSX Installation Manual

21
Echosounder
Supports:
• Sonar / CHIRP Sonar
• DownScan
• SideScan
• Active Imaging/Active Imaging 3-in-1/TotalScan/StructureScan
¼ Note: A 7-pin transducer cable can be connected to a 9-pin port using a 7-pin to 9-pin adaptor
cable. However, if the transducer has a paddle wheel speed sensor, the water-speed data will not
display on the unit.

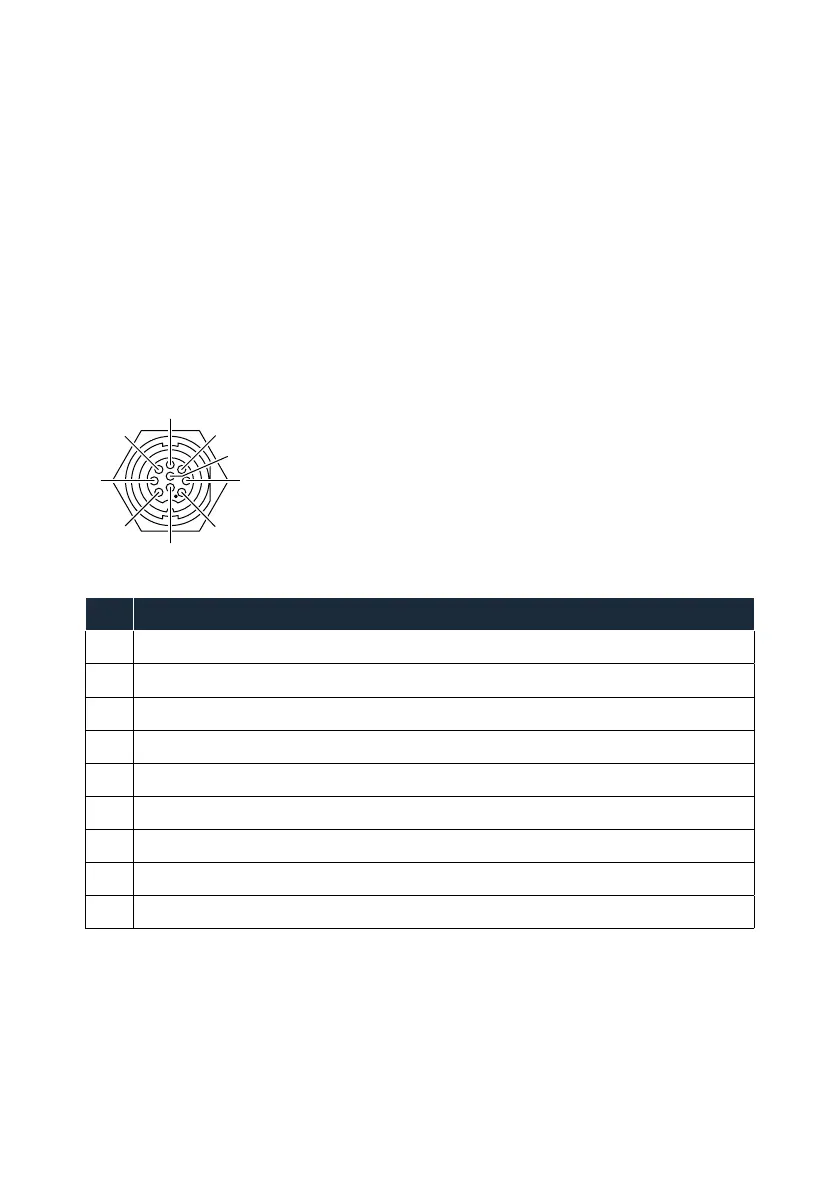

Connector details
Unit socket (female)
6
7
9
1
3
4
5
2
8
Pin Purpose
1 Drain/ground
2 Not used
3 Not used
4 Transducer -
5 Transducer +
6 Not used
7 Not used
8 Temp +
9 Transducer ID

Simrad NSX Specifications

General

Wi-Fi	Yes
Bluetooth	Yes
Touchscreen	Yes
GPS	Yes
NMEA 2000	Yes
Cartography	C-MAP, Navionics
Waterproof Rating	IPX6
Operating Temperature	-15°C to +55°C
