Instruction Manual
37
E03912 Issue 2.0
4 INSTALLATION
4.1 VHF installation
The radio should be sited so that engine noise and vibration or
other background noise do not make it difficult for the operator
to hear.
Although the RD68 radio is waterproof when flush mounted, it
is recommended that it is not installed where it will be exposed
to continuous direct sunlight, as this will eventually damage the
LCD display.
As microphones and loudspeakers contain powerful magnets,
the radio should not be installed within 1 m (3 ft 3 in) of any
compasses, whether magnetic or electronic.
The fins on the back of the case act as a heatsink to dissipate
heat generated by the set when in use, which maintains the high
efficiency of the radio. The free circulation of air is essential –
when mounting the radio in an enclosed space, ensure that the
space is vented.
The VHF is supplied with a reversible mounting bracket. This
can be used to mount the VHF on the chart table or on an over-
head bulkhead (Fig 4.1). The bracket is fixed in place using four
No. 10 x 3/4 in screws (supplied). Before installing, ensure that
there is at least 88 mm (3.5 in) vertical clearance and 100 mm
(3.9 in) horizontal clearance behind the bracket to allow the
radio to fit (Fig 4.2).

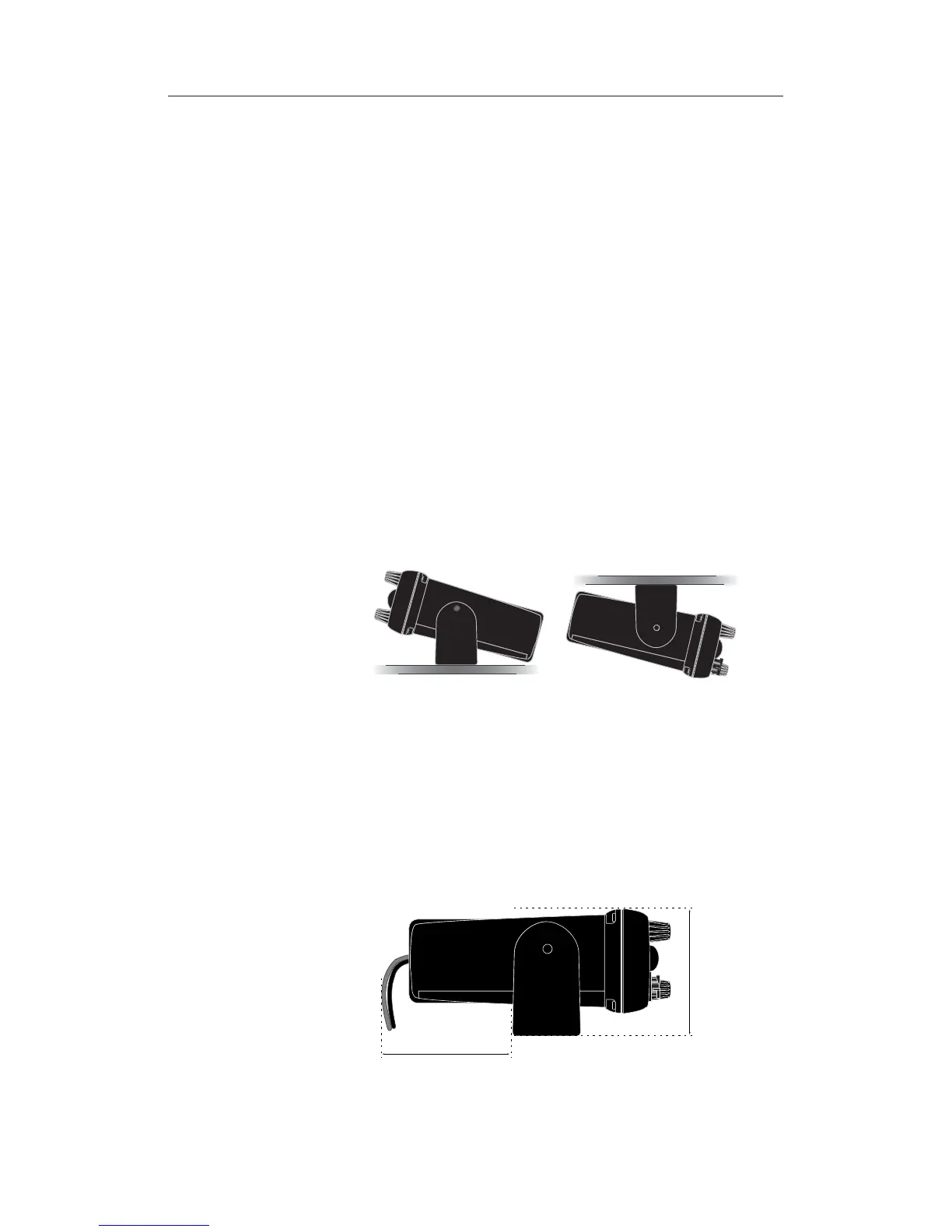

Fig 4.1 - Standard mounting options
Desktop mounting
Overhead mounting
Fig 4.2 - Minimum clearance required
100 mm (3.9 in)
88 mm (3.5 in)
