The radio is fixed to the bracket using a simple clamp arrange-
ment. The peg on the left side of the radio is slotted into the
hole in the bracket. The clamp on the right side of the radio
can then be slid into the slotted aperture on the bracket and
tightened to hold the radio firmly in place (Fig 4.3). The rake
angle of the radio can be adjusted by slackening the clamp.
1. Fit locating peg (left side) into hole in bracket
2. Slide locking clamp (right) into slot in bracket
3. Tighten clamp

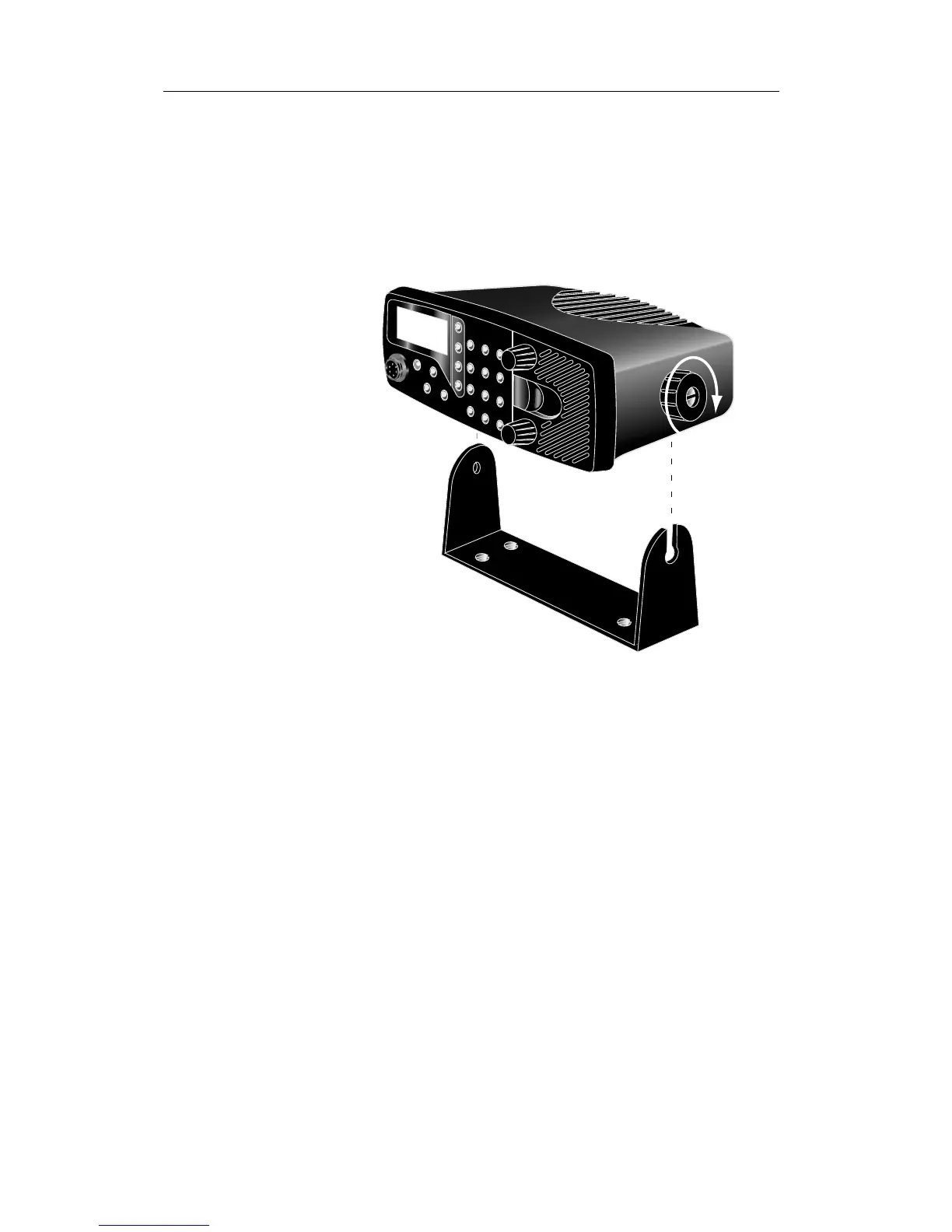

Fig 43 - Fixing VHF to bracket
1
2
3
An alternative mounting method is to use the flush mounting
kit FMB1000BK (supplied separately). This allows the radio to
be neatly installed inside a bulkhead, so that only the fascia of
the radio is visible. For more details of this and other acces-
sories available, please refer to section 5.2.
