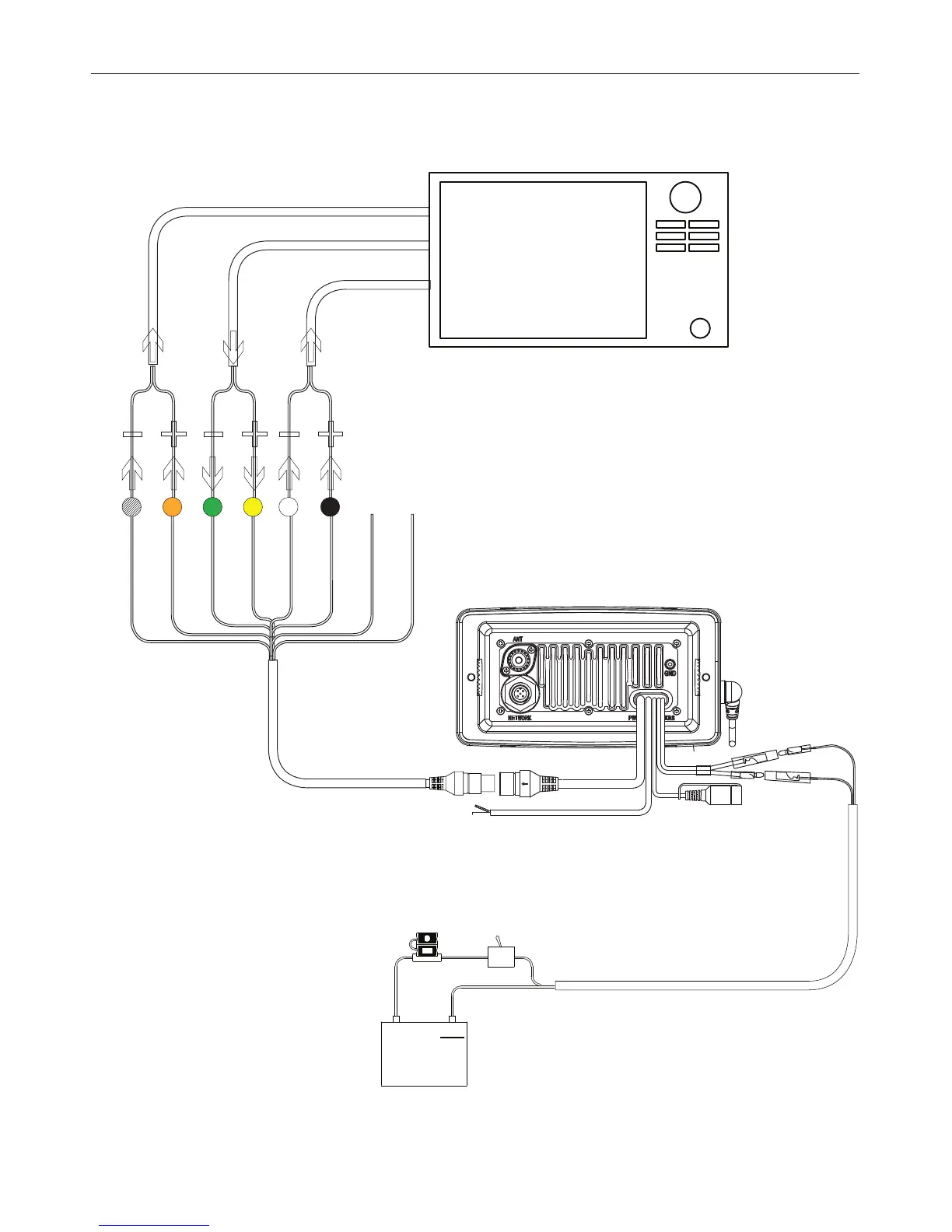

3.4 Wiring diagram - NMEA 0183 connections
RS35 VHF
GPS Plotter
+
12 VDC
Fuse Switch
Power 12 VDC only
1. Shield
NMEA0183 In 4800
DSC Information
NMEA0183 Out
GPS Position
RS422 38,400
AIS Information
2. Orange
3. White
4. Green
5.Yellow
6.Black
7. Blue N/C
8.Grey N/C
+
-
+
-
+
-
Red
Black
Simrad - RS35 & HS35 Installation Instructions 17
