4 HS35 Handset installation
1. Choose a suitable location that ensures sufficient room is allocated to allow the HS35
handset to fit securly in the charging bracket.
2. Hold the supplied mounting bracket at the chosen location and use a soft pencil to
mark the 3 screw holes and 1 wire hole positions onto the mounting surface.
3. Drill the 3 screw holes ( 4.0 mm) and 1 wire hole ( 3.5mm) where marked. Drill
completely through the mounting surface.
Note: If you are drilling into fiberglass, use a small drill bit to drill pilot holes before drill-
ing the screw holes.

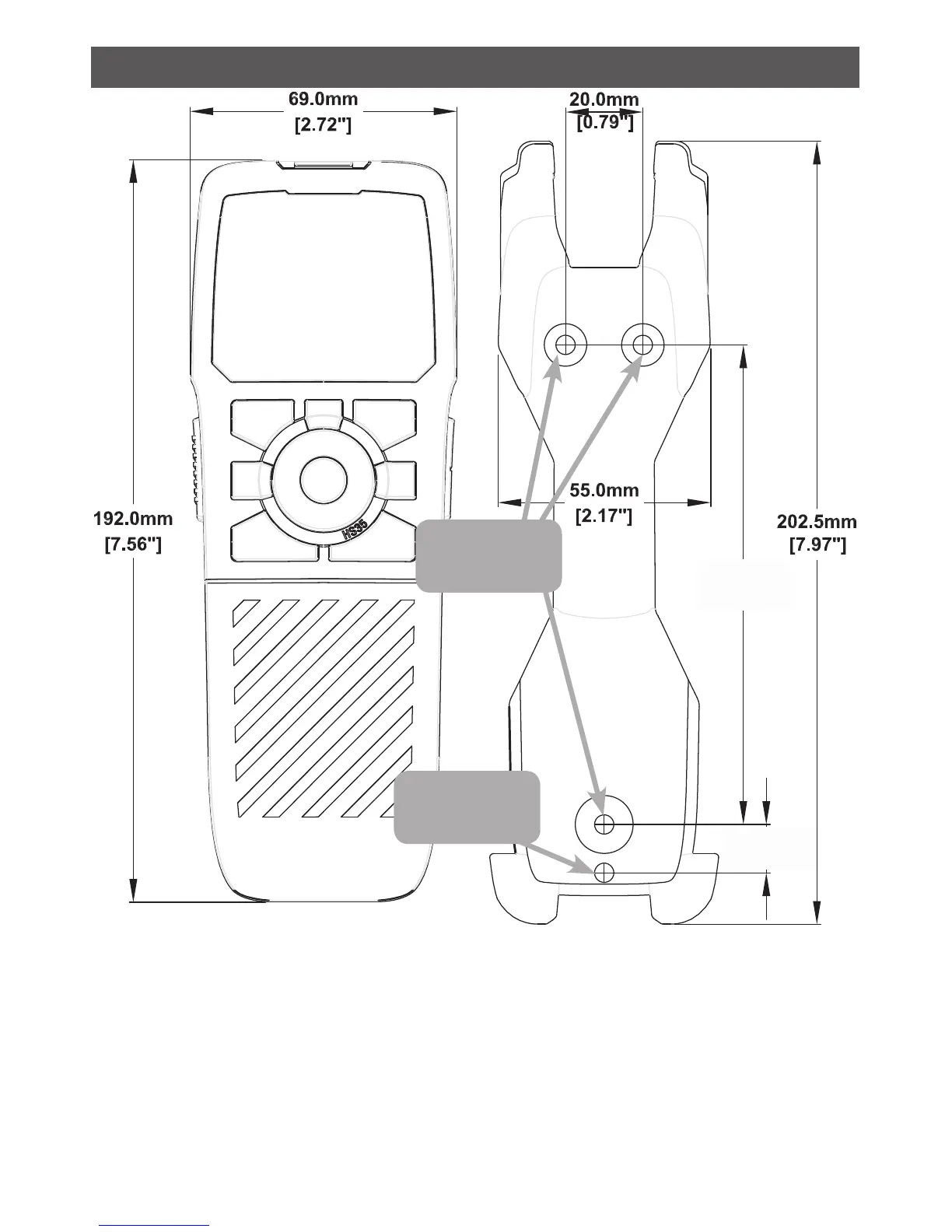

Drill 1 x 3.5mm
Wire hole
Drill 3 x 4.0mm
mounting holes
122.0mm
[4.80]
13.0mm
[0.51]
Simrad - RS35 & HS35 Installation Instructions18
