Installation | RS90 Installation Manual
Installing a wireless handset cradle
The wireless handset has a cradle that incorporates inductive
charging for the rechargeable battery.
1. Choose a suitable location that provides sufficient room for the
handset to fit securely in the charging cradle.

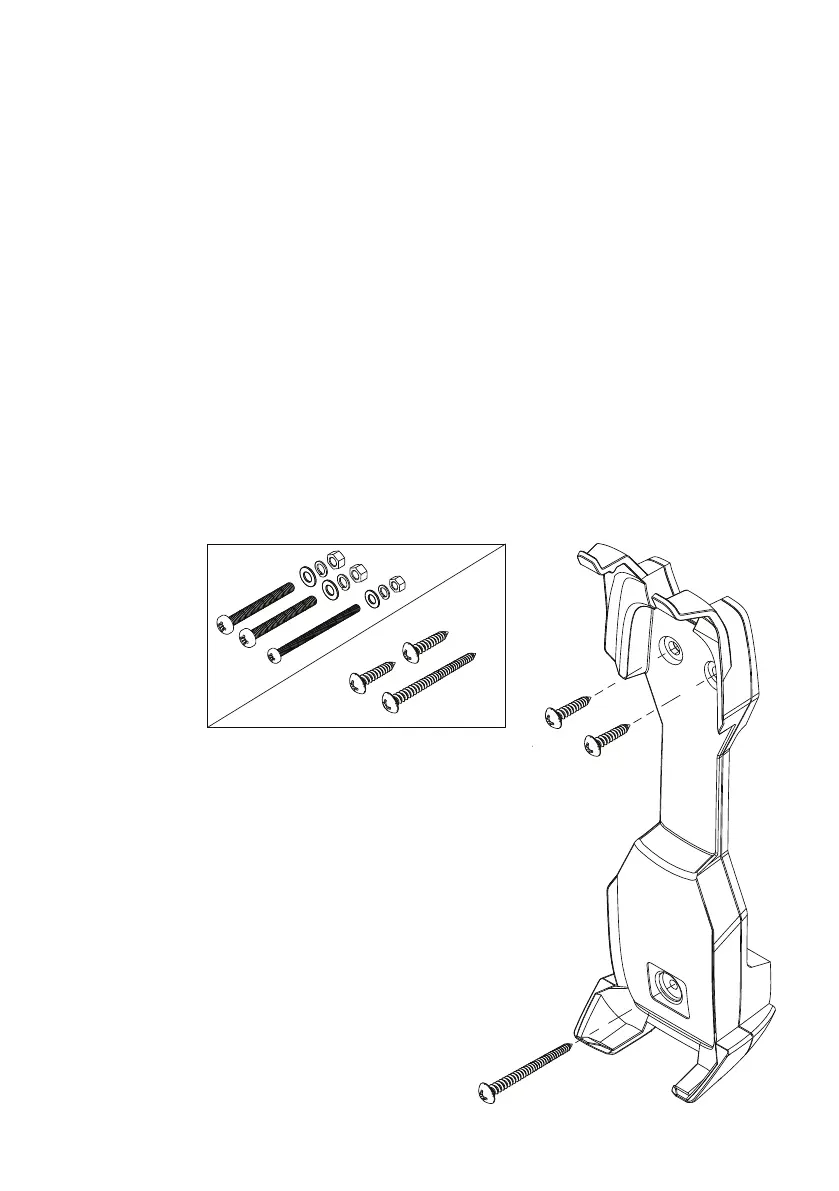

2. Hold the cradle at the chosen location and mark the positions of the
fastening holes and the wire hole onto the mounting surface.
3. Drill the holes where marked.
4. Feed the wire through the wire hole. If mounting outside, seal the
wire in the hole.
5. Attach the handset cradle using screws or pan head machine
screws.
6. Connect the wire to a 12 VDC source via a 1 A fuse:
• Red wire to 12 VDC positive
• Black wire to negative.
