Installing a wired handset cradle
This is the same as installing a wireless handset cradle with the
exception that no wiring is required.
Fastenings
• Top holes
2 x M3.5 x 28 mm machine screws, nuts and washers, or
2 x 3.5 mm self-tapping screws
• Bottom hole
1 x M3 x 40 mm machine screw, nut and washers, or
1 x 3 mm x 40 mm self-tapping screw.

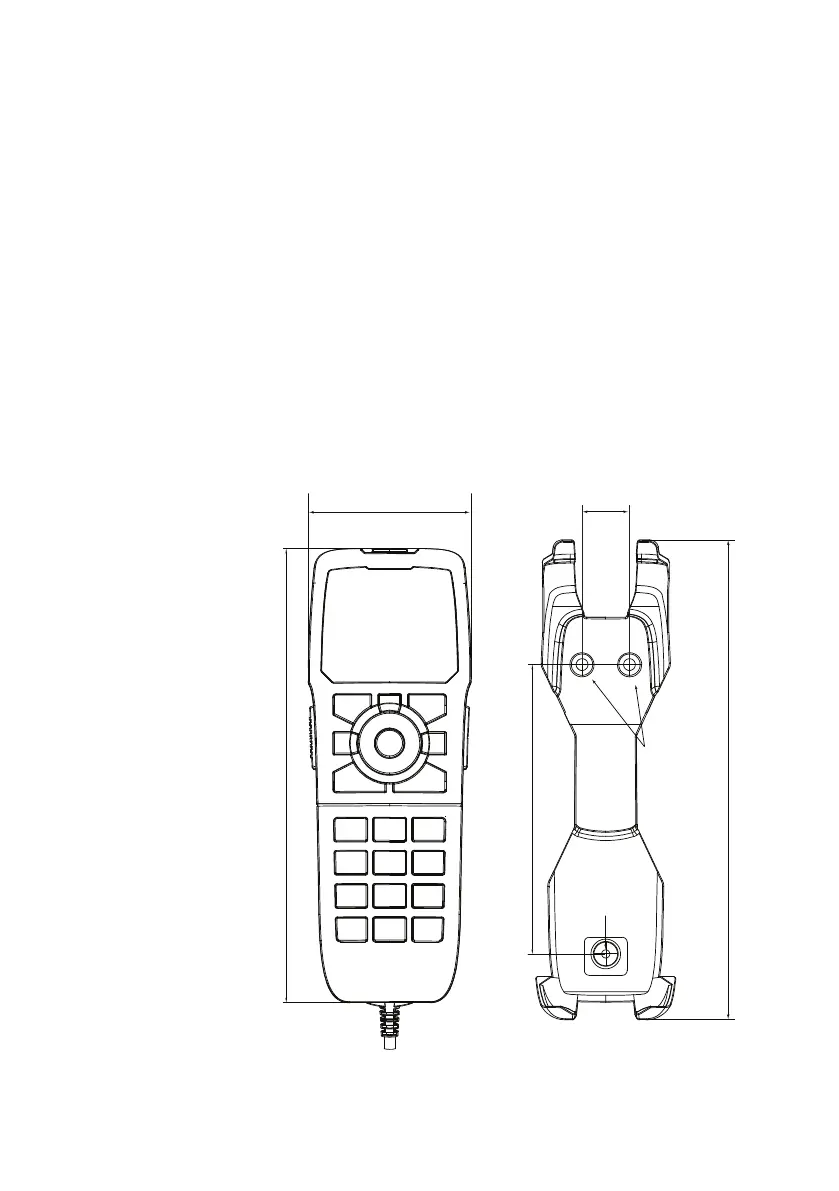

69.0 mm
(2.72”)
191.5 mm
(7.54”)
20.0 mm
(0.79”)
202.5 mm
(7.97”)
122.0 mm
(4.80”)
2 x 5.0 mm
(0.20”) holes
1 x 3.5 mm
(0.14”) hole
