| 21
Installation | RS90 Installation Manual
Transceiver external connectors
VHF antenna
A suitable radio antenna (not supplied) must be mounted and
connected with a PL295 connector before you can operate the
radio. Consult your Simrad dealer for advice, if necessary.
Always mount the VHF antenna as high as possible and at least 1 m
(39 inches) from the transceiver.
NMEA 2000 (N2K) connector
The RS90 radio can be connected to an NMEA 2000 network using
a cable (not supplied). For further information, see “NMEA 2000
Network” on page 26.

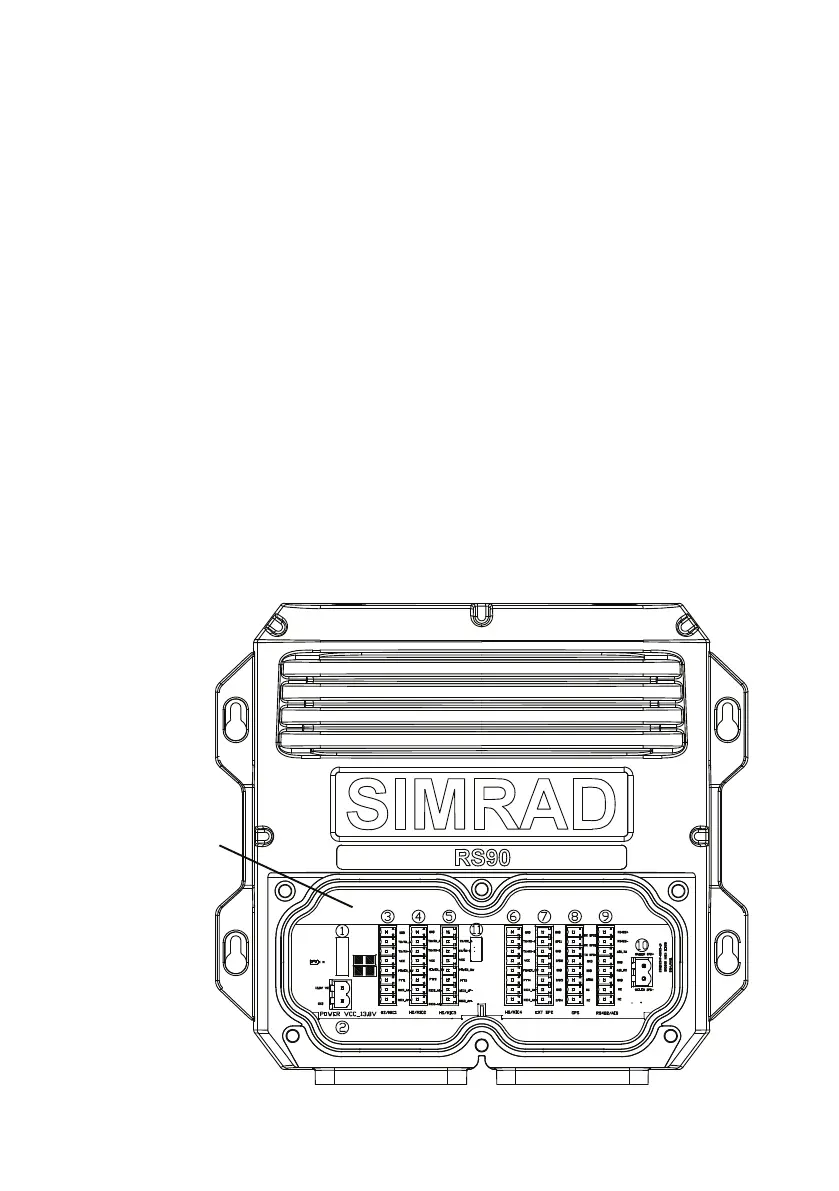

Transceiver internal connectors
To access the internal connectors, remove the cover plate by
unscrewing the captive screws. The connectors are on the internal
circuit board, which is located as shown below.
Internal
connector
blocks
