2.2.6 Channel 16 (16)
Will automatically select Channel 16 on High Power when
pressed. Any function active (Dual Watch, Scanning etc) will
be cancelled.
2.2.7 Squelch (Sq)
This knob is used to adjust the receiver muting threshold
(squelch) level. To cut out weaker signals, increase the squelch
until the background interference noise disappears. To receive
weaker signals, decrease the squelch.
2.2.8 Volume, On/Off (Vol)
The radio is switched on by turning the volume knob clock-
wise. To increase the volume, turn the knob further clockwise.
To reduce the volume, turn the knob anticlockwise. Turn the
knob fully anticlockwise to switch off.

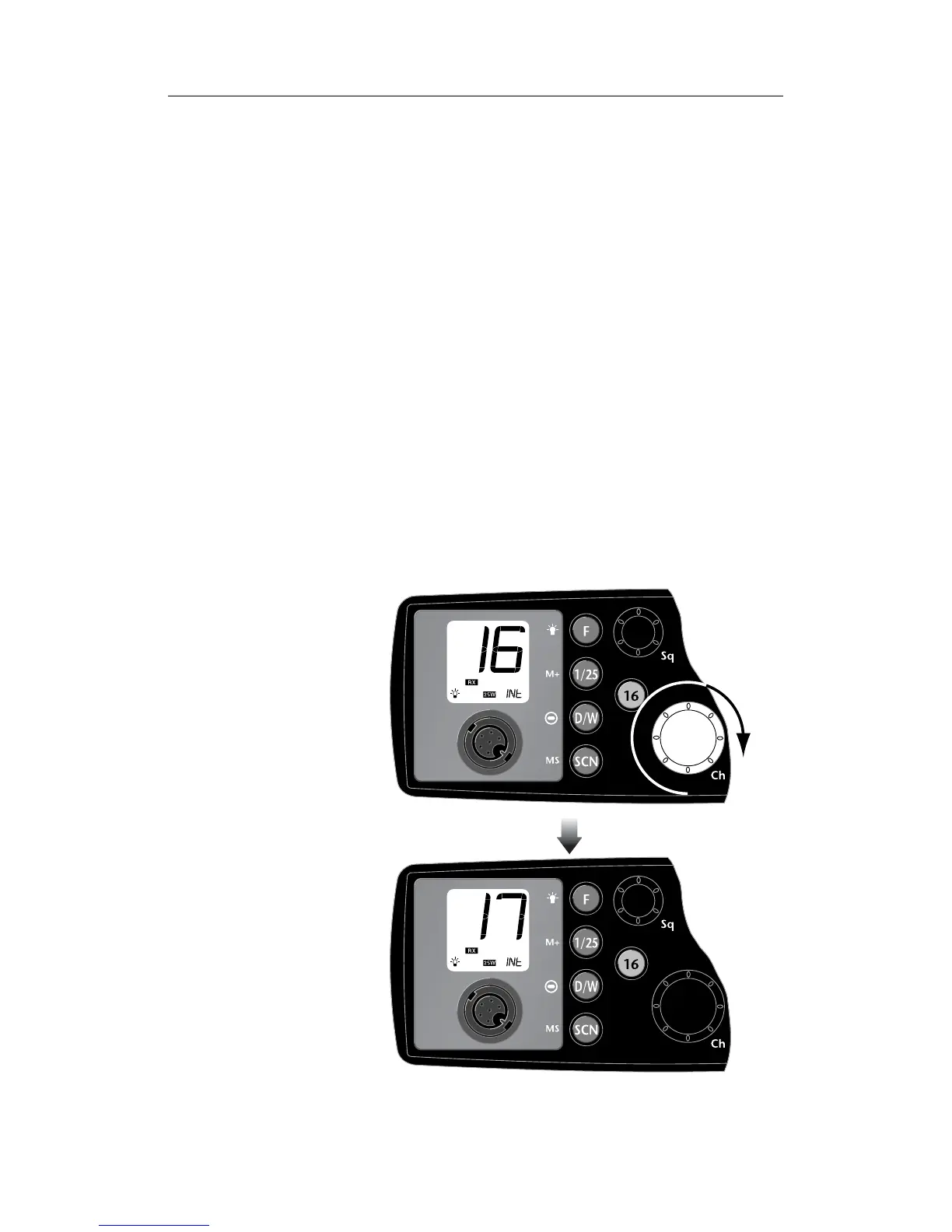

2.2.9 Channel Select (Ch)
The VHF features a rotary channel selector. Rotate the knob
clockwise to scroll up through the available channels, anticlock-
wise to scroll down (Fig 2.6).
Instruction Manual
13
E04074
Fig 2.6 - Changing channels
