Simrad TXL-10S-4 - NMEA; COMMS Cable

22 |
Pinouts |10kW and 25kW Installation Manual

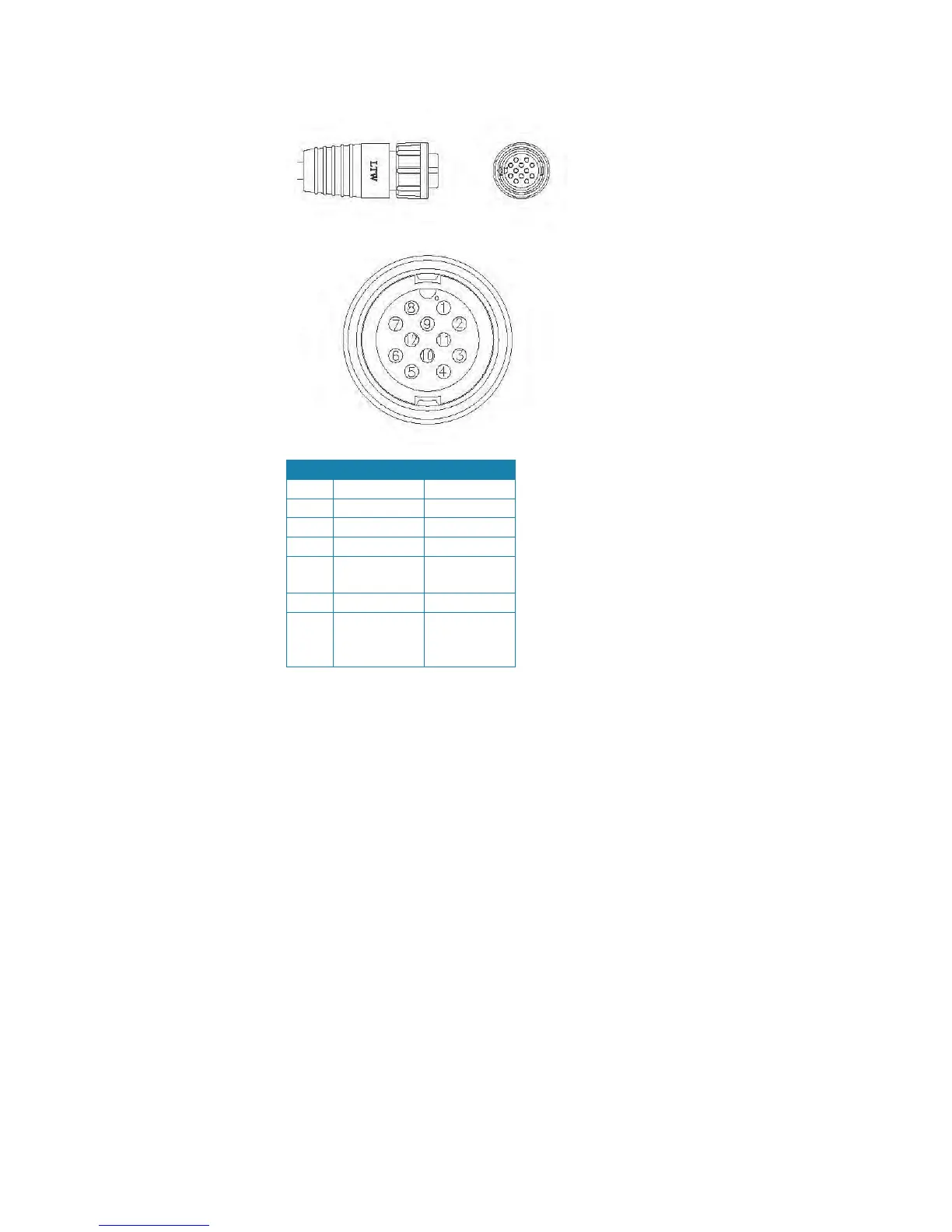

NMEA / COMMS cable
Pin Function Color
1 NMEA RX A Green
2 NMEA RX B Red
7 NMEA TX A Orange
8 NMEA TX B Blue
12 NMEA TX
GROUND
Yellow
9 SHIELD Drain
10 RADAR
REMOTE
POWER IN
Brown
 Note: the NMEA/COMMS cable is an optional cable (part number: AA010070) for installations
using a NMEA 0183 heading sensor.
