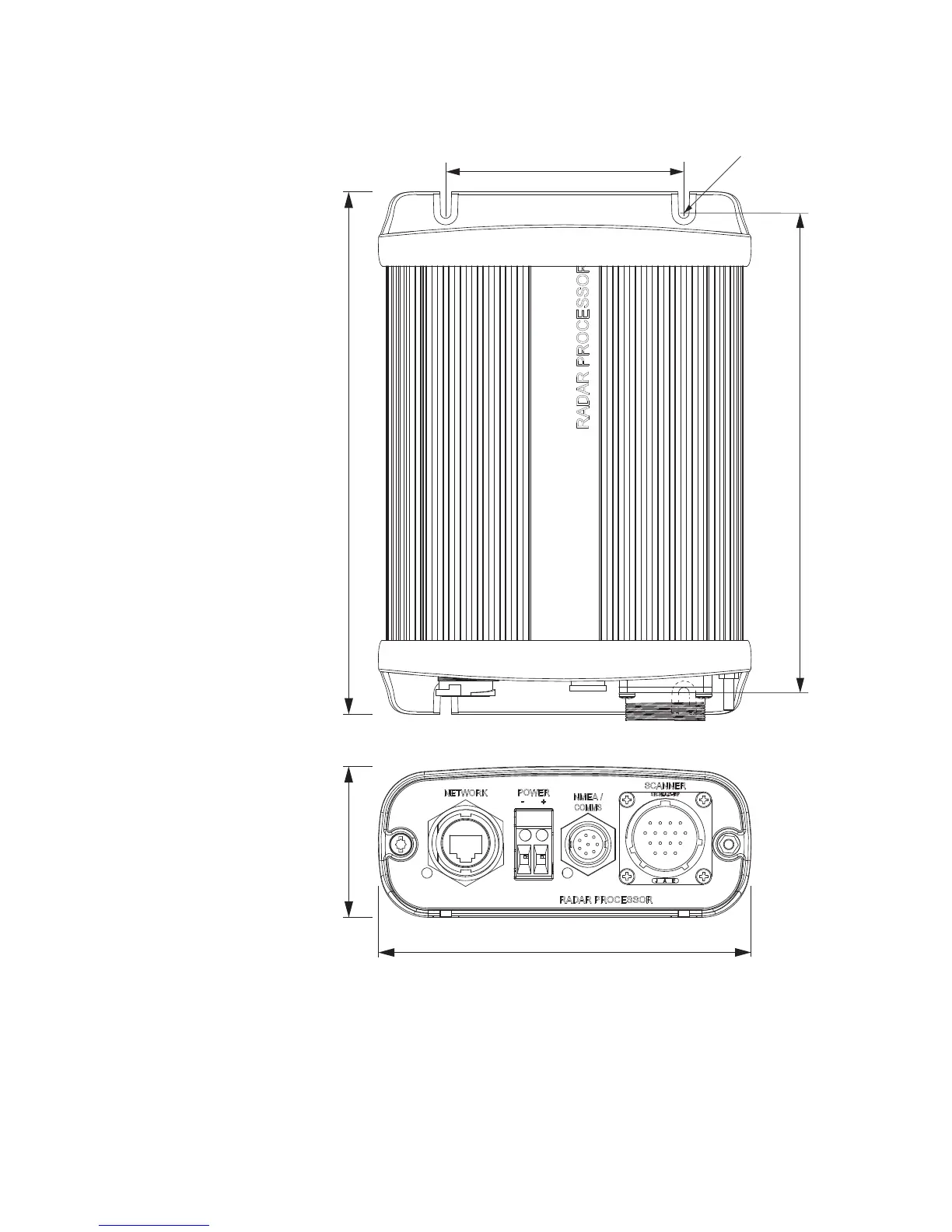

Drawings | 10kW and 25kW Installation Manual
Radar processor
197.5 mm (7.77")
182.6 mm (7.19")
90.4 mm (3.56")
ø: 4 mm (3.56")
141 mm (5.55")
57.1 mm (2.25")
