Technical Information
Service Manual
56789
11
10
12
13
14
1
2
No. Name No. Name
1 Fuse 8 Auto button
2 Live wire interface 9 Interface of PG feedback interface
3
Inte
rface of health function neutral
wire(only for the model with this
function)
10 Swing interface
4 Neutral wire interface 11 Jumper cap
5 Fan motor interface of PG 12 Interface of temperature sensor
6
Interface of health function live wire(only
for the model with this function)
13 Display interface
7 Communication interface 14 Wi interface

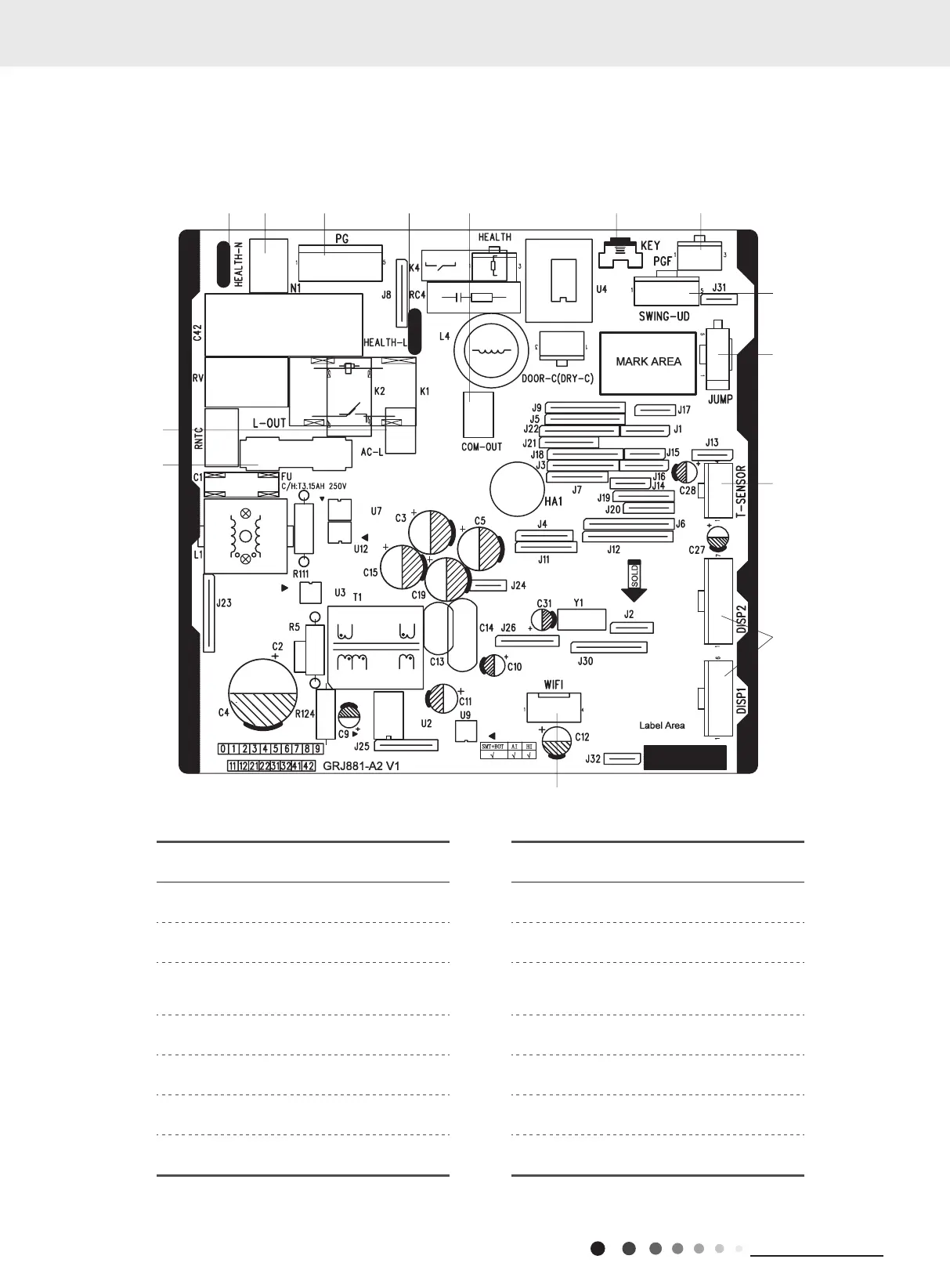

5.2 PCB Printed Diagram
Indoor Unit
SIH-09BIK
3 4
