Liquid Crystal Display of Wired Controller

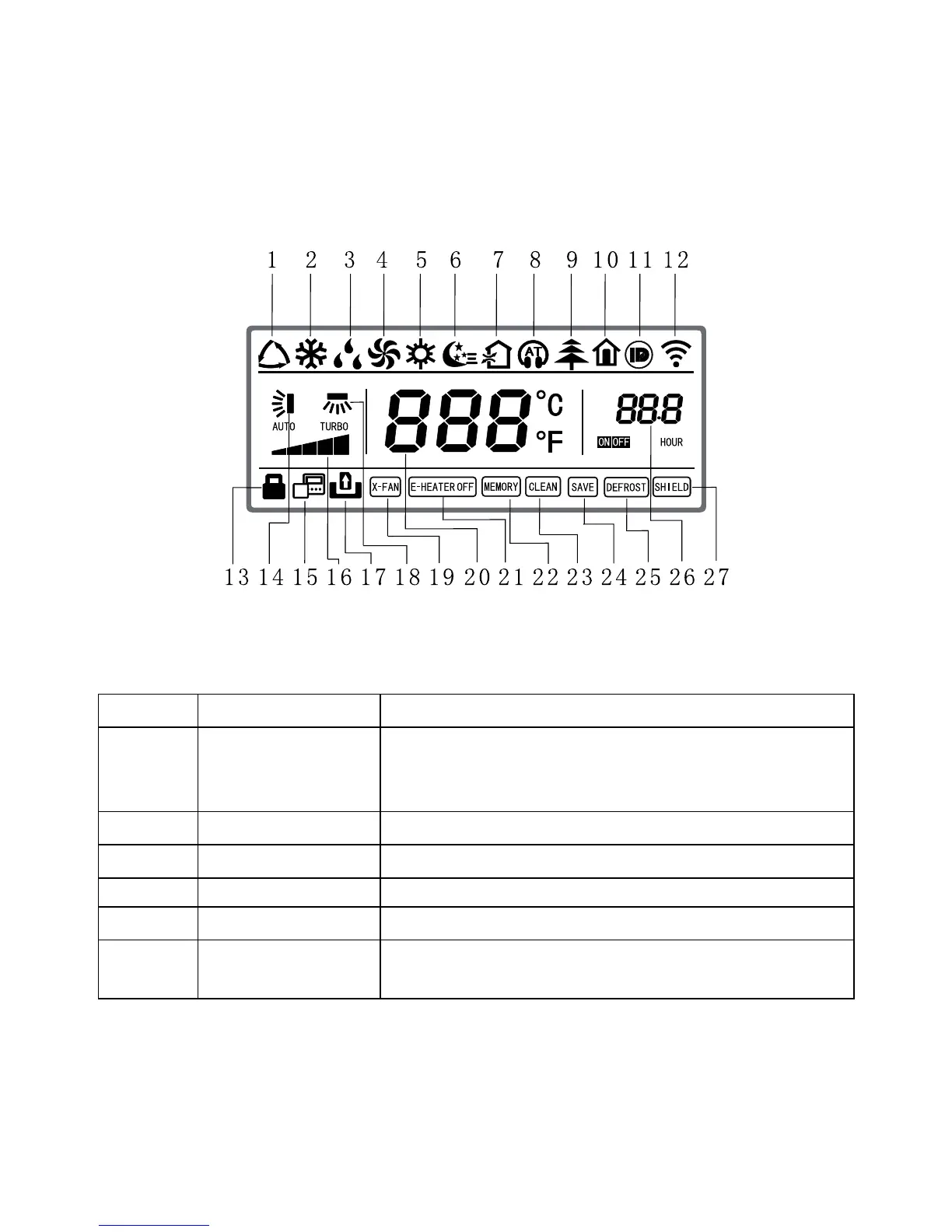

Figure 2-2 Liquid Crystal Display of Wired Controller
2.3
Instruction for Liquid Crystal Display of Wired Controller
Table 2.3.1 Instruction for Liquid Crystal Display of Wired Controller
No.
Display Instruction of Display
1 Auto
Automatic mode (under auto mode, the indoor unit
will select its operating mode according to the var-
iation of room temperature)
2 Cool
Cooling mode
3
Dry Dry mode
4 Fan Fan mode
5 Heat
Heating mode
6
Sleep
Display when sleep function is set (only display
sleep mode II)
