1.3 Servo motor

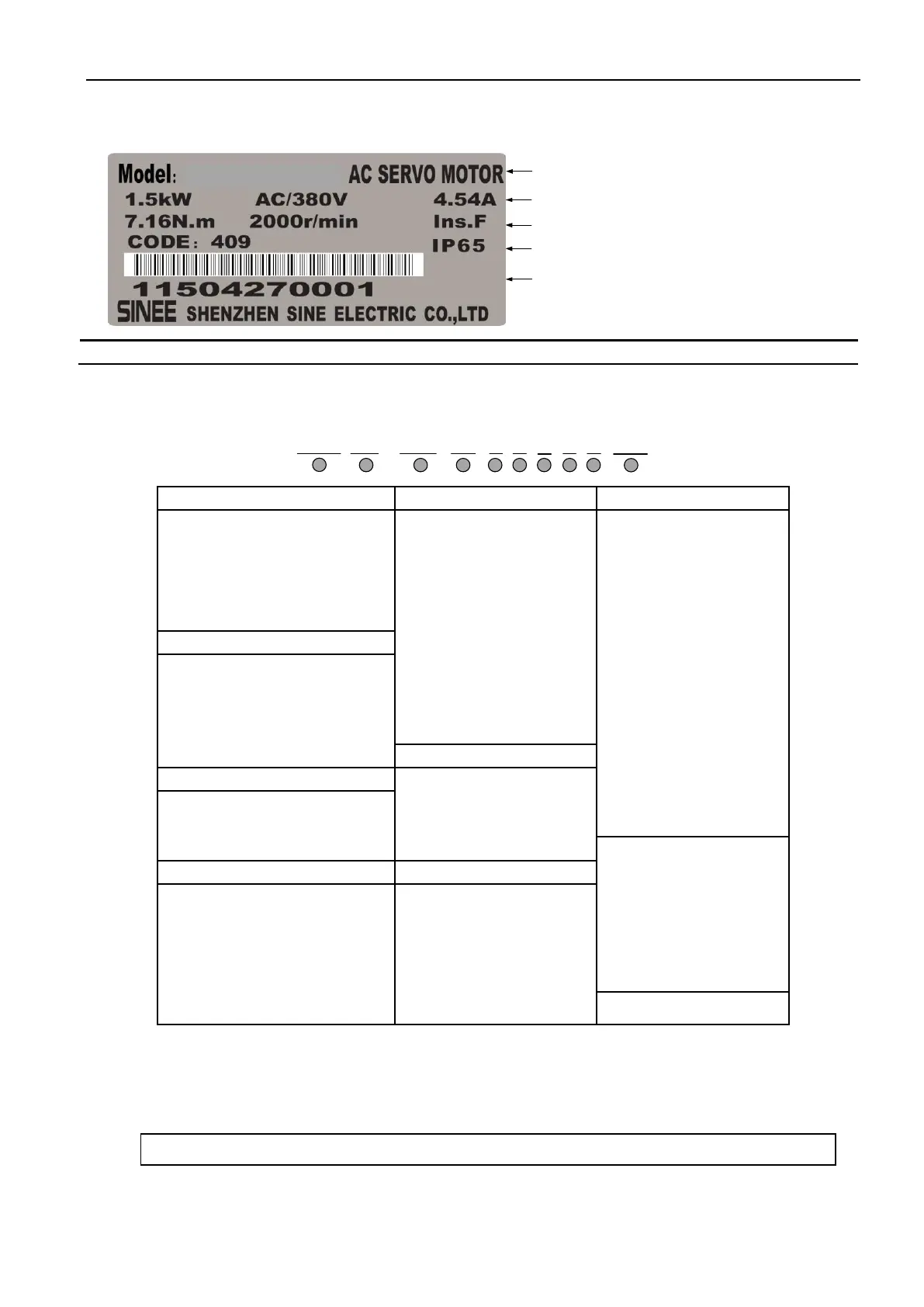

1.3.1 Nameplate description
Model
Rated output power, rated input voltage, rated current
Rated torque, rated speed, insulation grade
Barcode & S/N
Motor code Protection level
SER13-1R5-20-3FBY
Note: The text on the actual product nameplate may be slightly different from that shown in the figure.
1.3.2 Model description
SER 08 - 0R7- 30 - 2
F
1
A
Y
2 3 4 6 75 8 9
-
XX
10
1
① Product series
② Motor flange size
③ Rated output power
SER: Standard servo motor
04: 40mm
005: 50W
SES: High performance servo
motor
06: 60mm
0R1: 100W
SEM: High-power servo motor
08: 80mm
0R2: 200W
09: 86mm
0R4: 400W
11: 110mm
0R7: 750W
④ Rated motor speed
13:130mm
1R0: 1000W
10: 1000rpm
18: 180mm
1R5: 1500W
15: 1500rpm
20: 200mm
2R0: 2000W
20: 2000rpm
26: 266mm
3R0: 3000W
25: 2500rpm
4R4: 4400W
30: 3000rpm
⑦ Inertia type
5R5: 5500W
⑤ Voltage level
A: Low inertia
7R5: 7500W
2: 220V
B: Medium inertia
011: 11000W
3: 380V
C: High inertia
⑨ Optional
⑥ Encoder type
⑧ Shaft end
None: No option
A: 2500ppr incremental
X: Shaft without keyway
*1
1: With brake (DC24V)
B: 17-bit incremental
Y: Shaft with U-shaped
keyway and screw hole
*2
2: With oil seal
H: 17-bit magnetic incremental
Z: Shaft with double round
keyways and screw hole
3: With a brake and oil
seal
F: 23-bit absolute
G
*1
: 2500ppr wire-saving
encoder
⑩ Special specifications
*1: Non-standard product, not recommended.
*2: Some varieties may have double round keyways, but except the 130 flange motors, the
width and height of the key are the same as those of the U keyway. See Chapter 10.
The above 10 elements are not optional, please refer to the selection guide or consult SINEE.
