EA180 Series Servo Drive Users Manual
8
Chapter 1 Product Information
1.1
Confirmation upon unpacking
In order to check if there is negligence in the purchase and delivery of this product, please check
the items listed in the following table in detail:
Is it consistent with the model
you ordered?
Check the product model on the motor and drive nameplates
respectively.
If cables are ordered, check the type and length listed on the
label of the cables.
Is there any damage during
transportation?
Visually inspect the appearance for any damage or scratches
Does the motor shaft run
smoothly?
Rotate the motor shaft by hand. If it can run smoothly, it
means that the motor shaft is normal. However, the motor with
a brake cannot be rotated by hand!
1.1.1 A fully operable servo assembly shall include:
1) A servo drive and a matching servo motor.
2) An encoder signal line connecting the mother seat of the motor-side encoder and the CN5
terminal of the drive.
3) A motor power line with four core wires of U (red), V (white or blue), W (black or brown) and
PE (yellow and green) (a motor with a brake should also have two power lines for the brake).
U, V and W wires must be connected to the corresponding terminals on the drive in sequence,
and PE wire must be connected to the ground terminal of the drive.
4) The DB44 connector for CN4 can be used to make control lines according to actual needs.
1) It is strongly recommended to purchase encoder signal lines from SINEE.
2) The colors of internal core wires of your motor power line purchased may be different
from the above description. Therefore, please be sure to follow the letter marks on the core
wires rather than colors.
1.2 EA180 servo drive

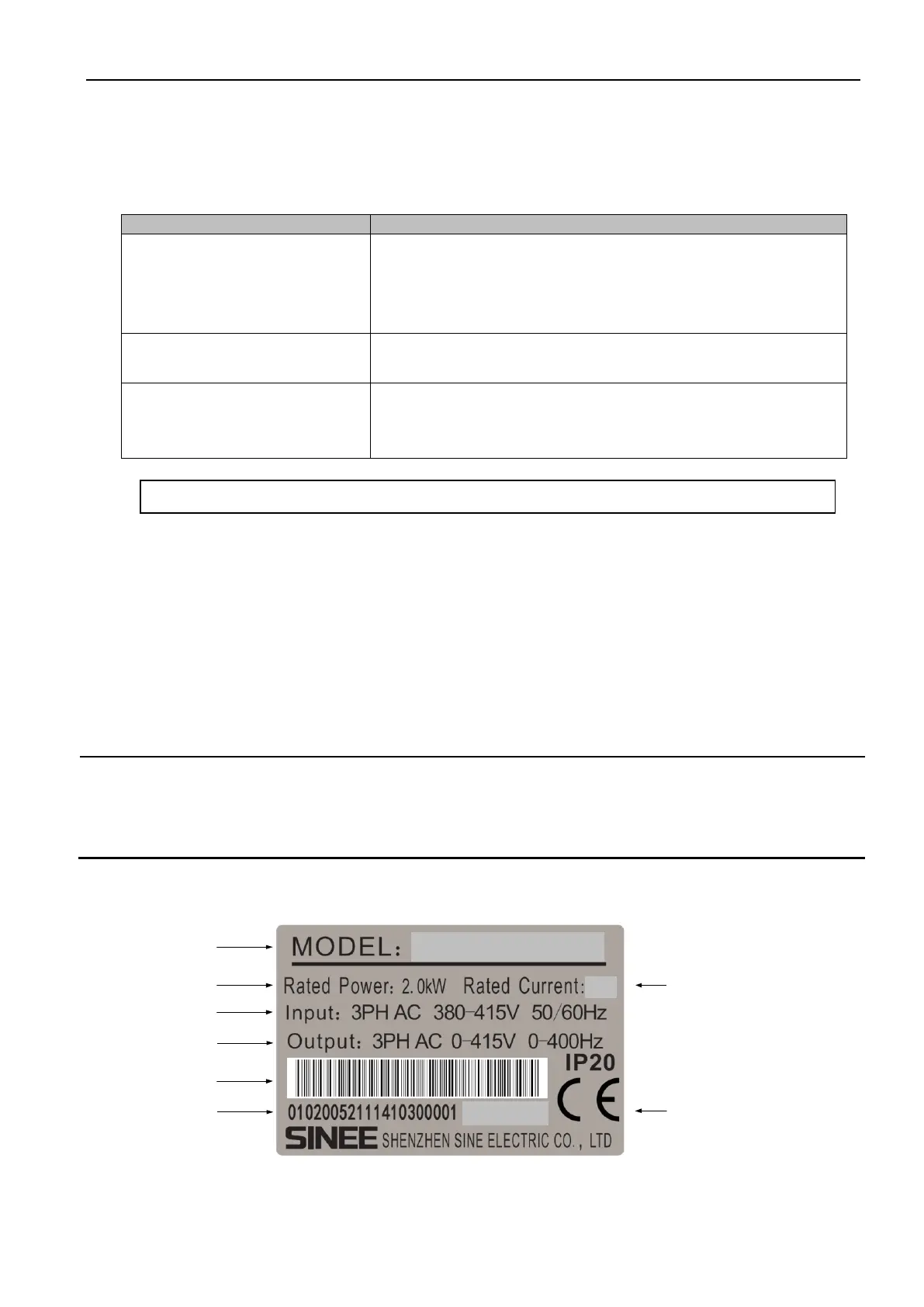

1.2.1 Nameplate description
Model
Applicable
motor power
Power supply
Output
Barcode
S/N
Rated output current
EA180-8R5-3B
XXXXXX
Software version
8.5A
If there is any abnormal situation, please contact the agent for a proper solution.
