Sinfonia Technology C10 Series User Manual

5
HTE302172 17/46
6

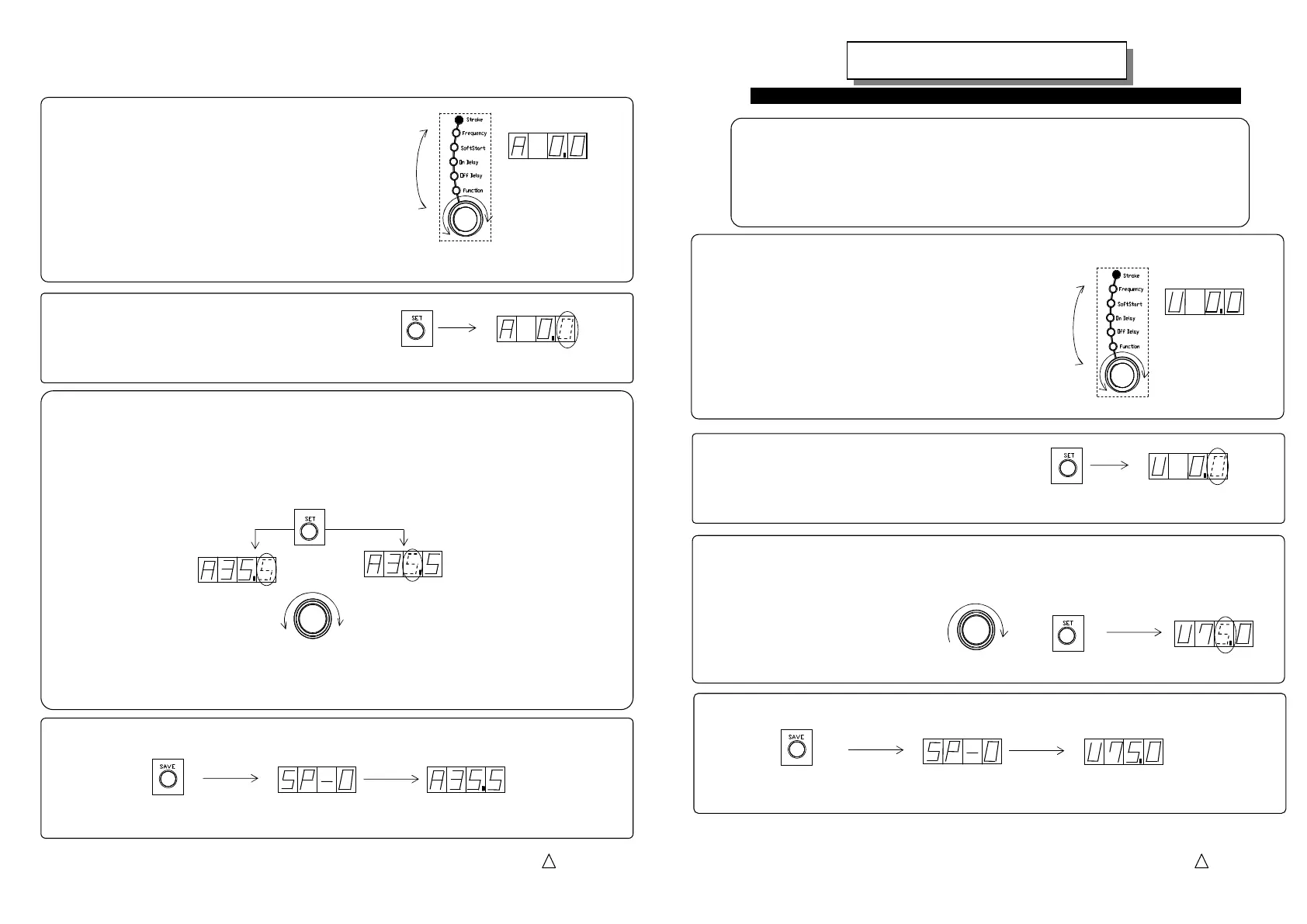

5. Dial setting encoder and set the stroke so that work pieces are discharged smoothly on the track.
Push “Set” button to shift the blinking digit from decimals to units.
In the case of “Model CF” drive unit the stroke must be set at the maximum of the unit and scaling
must be done. See page 22.
The “Setting of the stroke” must be set within the maximum of the drive unit.
3. Dial “Selection Dial” and select “Stroke” turning
“Stroke” lamp on.
Selection Dial
Stroke data appears
Turning on
Dial
6. Push “Save” button to store the data having been set.
Push “SAVE” button Storing New data is stored
4. Push “Set” button to change the mode from
“Indication” to “Adjustment”.
Blinking
Push button
Setting Encoder
Dial
Blinking digit for alteration
Push button
Note: When the set value is lower than 10.0 alter the sensor feed back gain “Fb” to “Fine” or “1”.
It spreads adjustable range of the stroke six times and it makes setting easy and precise.
5
HTE302172 18/46
6
After setting the “Frequency Range”, set the stroke following the procedure below.
Put some work pieces in the bowl or chute and set the stroke so that they are discharged
smoothly on the track.
Without the stroke sensor or pulling the plug connector of the stroke sensor off
C10-controller, the running mode is “Constant Voltage” mode.
1. Dial “Selection Dial” and select
“Stroke” turning “Stroke” lamp on.
Stroke data appears
Selection Dial
Turning on
Dial
2. Push “Set” button and change the mode
“Indication” to “Adjustment”.
Blinking Push button
3. Dial “Setting Encoder” and set the value around 70 to 80 percent.
Push “SET” button to shift the blinking digit from decimals to units.
In the case of “Model CF” drive unit the value must be set at 90 percent.
Push button
Blinking
Setting Encoder
Dial
4. Push “Save” button to store the data having been set.
Push button Storing New data is stored
Initial Setting
Initial SettingInitial Setting
Initial Setting
-Continued-
How to set the stroke on the Constant Voltage Mode
How to set the stroke on the Constant Voltage ModeHow to set the stroke on the Constant Voltage Mode
How to set the stroke on the Constant Voltage Mode
