5
HTE302172
37/46
6

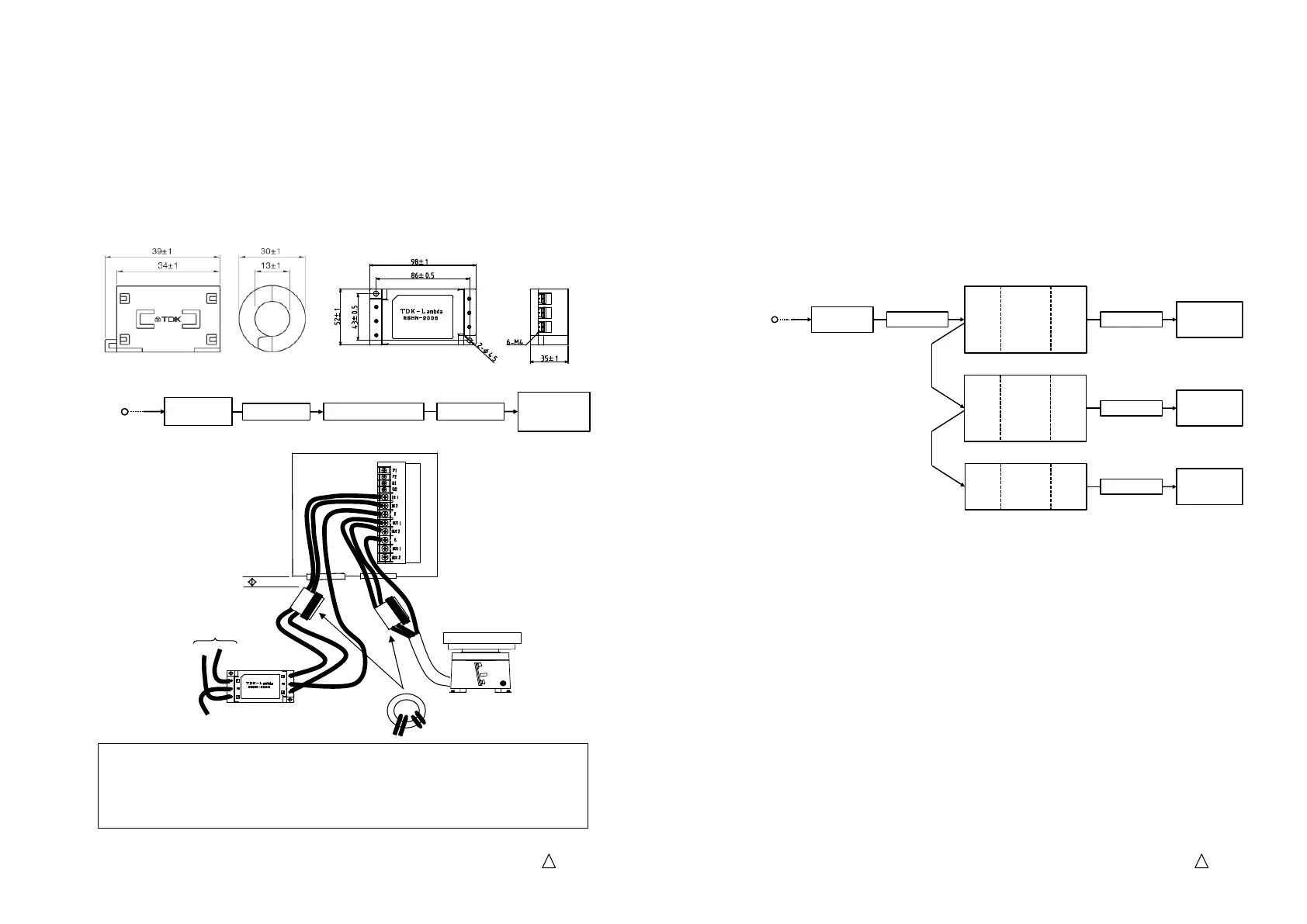

2. Noise filter
a. The input and output power line of the controller should install noise filters
mentioned below on them.
b. Addition to them, a single phase noise filter should be installed on the input
power line prior to the clamp filter.
Single phase
noise filter
Clamp filter C10-type controller Clamp filter
Parts feeder
Or
Linear feeder
Input power
Clamp filter
ZCAT3035-1330 made by TDK
Single phase noise filter
RSHN2006 made by TDK-Lambda
Please wind each power lines on the clamp filters once.
You may wind the ground line together with the power lines.
Those lines must be passing through the orifice of the clamp filter twice.
Winding the ground line together with the power line results no performance-sapping.
AC200～230V、50/60Hz
Or AC100～120V、50/60Hz
Less than
Ground
Ground
5
HTE302172
38/46
6
In the case of two or three sets of controller are installed in the same enclosure and the
power supply for them may be connected in a row, only one single phase noise filter and
one clamp filter should be installed on the original input power line.
Exception
ExceptionException
Exception: C10-5VF or C10-5VFEF must not be connected in a row, they must require a single
phase filter and a clamp filter for each set.
Three sets of the C10-type controller at the most are connectable in a row power supply
without the above exception.
Single phase
noise filter
Clamp filter Clamp filter
Parts feeder
Or
Linear feeder
Clamp filter
Parts feeder
Or
Linear feeder
Clamp filter
Parts feeder
Or
Linear feeder
Input power
（Note 2.）
C10-1VF
C10-1VFEF
IN1,2 C10-1VCF OUT1,2
E C10-06MVF E
C10-3VF
C10-3VFEF
C10-1VF
IN1,2 C10-1VFEF OUT1,2
E C10-1VCF E
C10-06MVF
C10-1VF
C10-1VFEF
IN1,2 C10-1VCF OUT1,2
E C10-06MVF E
C10-3VF
C10-3VFEF
（Note 1.）
（Note 1.）
Note 1.
The power supply passing through a single phase filter and a clamp filter should be connected
to the controllers in a row. The power cable connecting two sets of the controller must
be shorter than 150mm.
Note 2.
In the case of three sets of the controller are connected in a row, one of the three sets
must be C10-1VF, C10-1VFEF, C10-1VCF or C10-06MVF.
To Next Page
