Singer 14T957DC - Upper Looper Upper Thread Guide; Check Upper Looper Upper Thread Guide; Setting Upper Looper Upper Thread Guide

26
B
1.5 mm
1047306-26

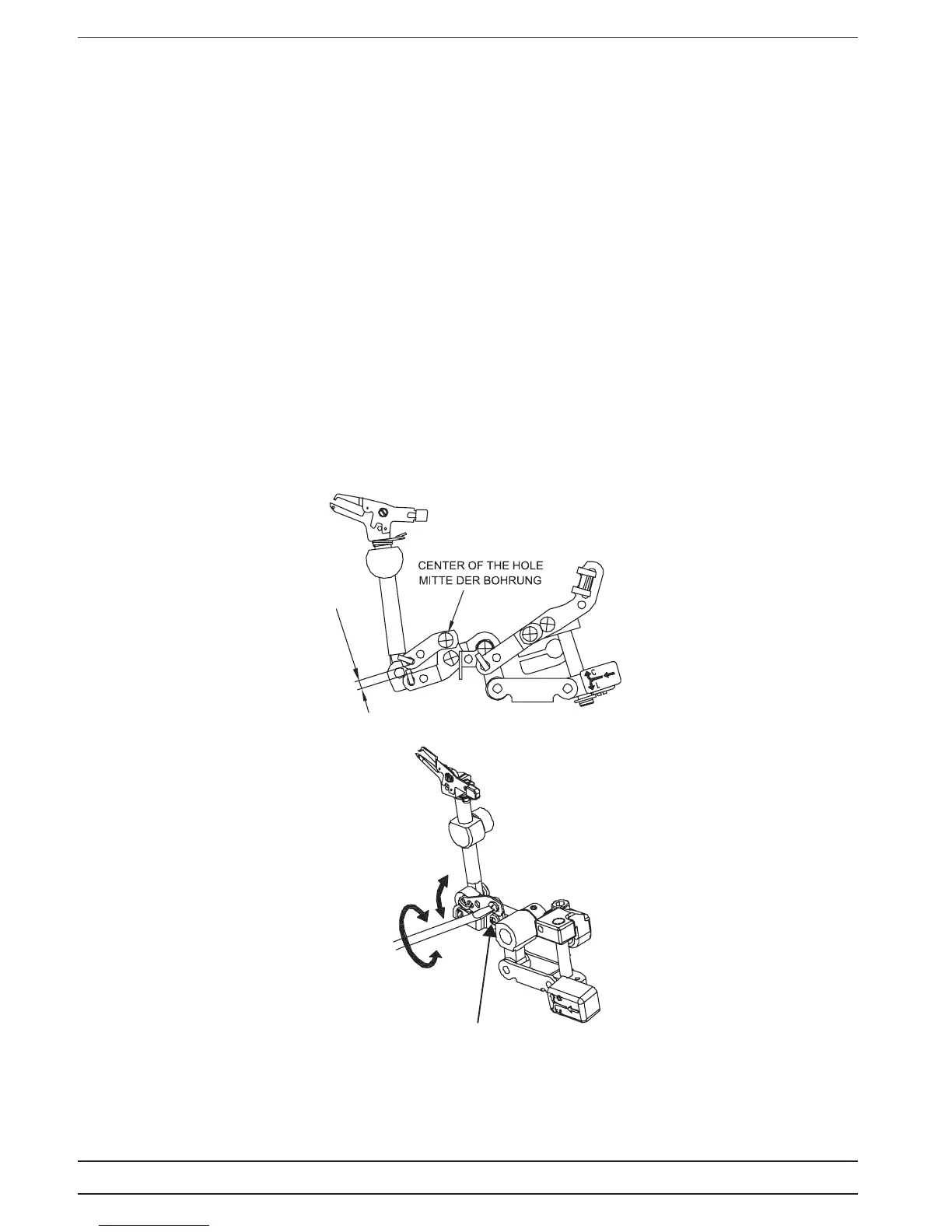

23. Set the Upper Looper upper thread guide
Check
1. Check so the settings of the Lower Looper lower thread guide and Upper Looper lower
thread guide is correct.
2. The distance between the upper loopers upper thread guide and the upper loopers lower
thread guide should be 1.5 mm when the upper loopers upper thread guide set screw is in
the centre of the thread guides hole.
Setting
1. Loosen the Set screw (B)
2. Move the upper loopers thread guide to its correct position.
- to 1.5 mm
- so the screw is in the centre of the hole
3. Tighten the set screw
