Singer 14T957DC - Presser Bar Height Adjustment; Check Presser Bar Height; Setting Presser Bar Height

4
B
B
1047306-26

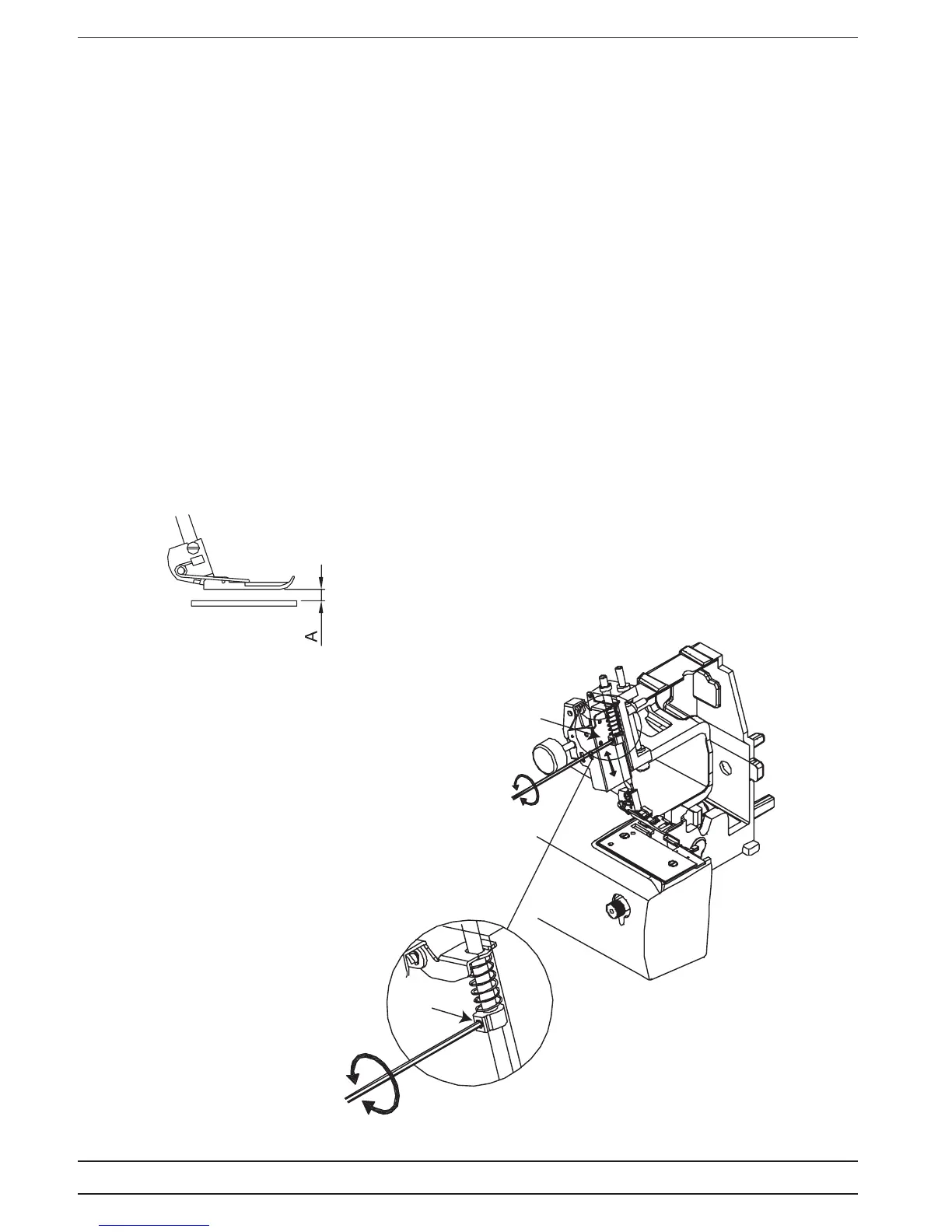

1. Presser bar height
Check
With the presser bar lever raised, there must be a 4.4 mm (A) gap between the needle plate
and the bottom of the presser foot.
Setting:
1. Remove the face cover.
2. Remove the fastening screws (D) and lift out the light bulb socket completely.
3. Loosen the 2.5 mm Hexagon screw (B) on the presser bar holder.
4. Move the presser bar until the bottom of the presser foot is positioned, So there is a 4.4
mm (A) gap between the needle plate and the bottom of the presser foot.
5. Slightly tighten the screw (B).
6. Lower the presser foot and, by rotating the presser bar, align the presser foot slots with the
needle plate slots.
7. Retighten the screw (C).
8. Re-check as described under “Check”.
