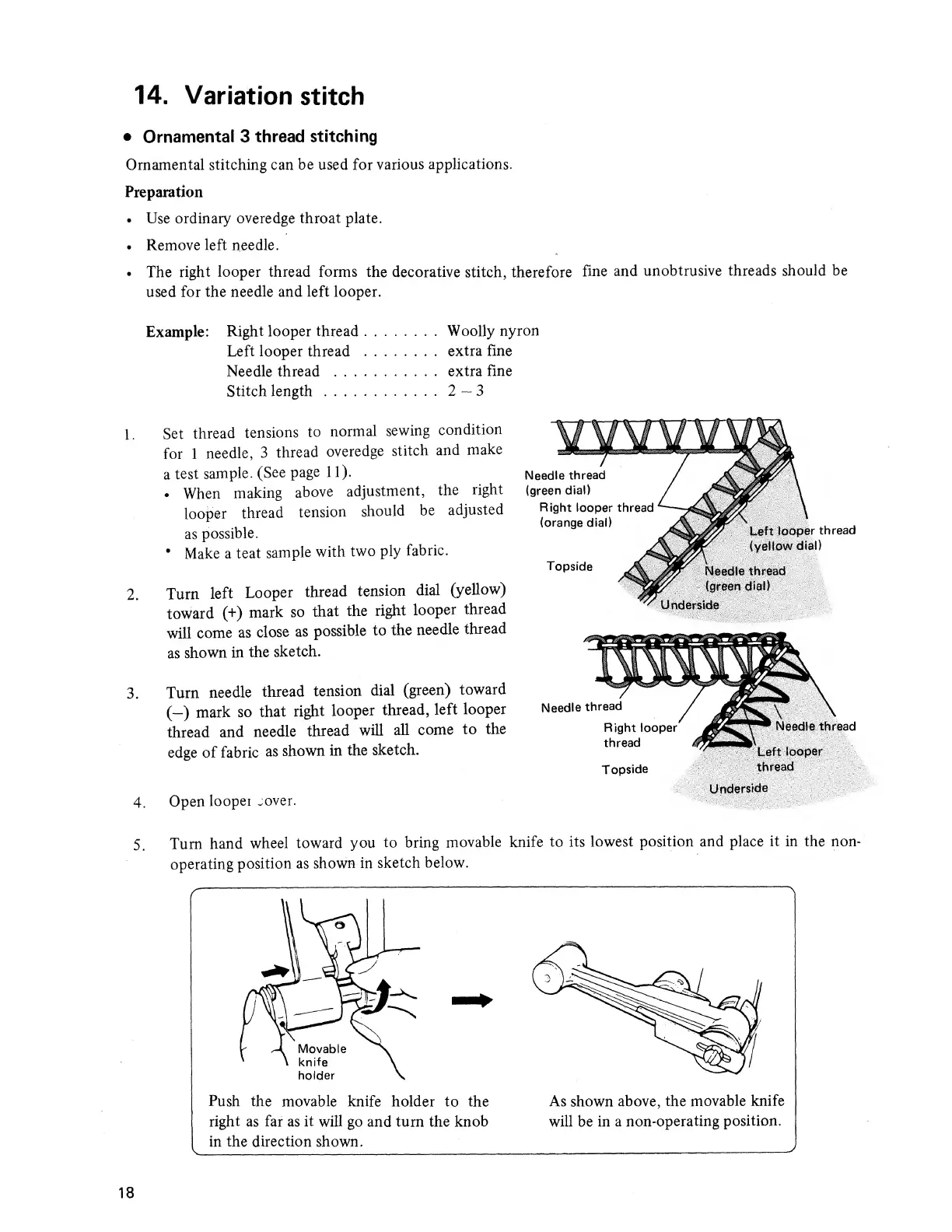

14. Variation stitch
• Ornamentai 3 thread stitching
Ornamental stitching can be used for various applications.
Preparation
• Use ordinary overedge throat plate.
• Remove left needle.
• The right looper thread forms the decorative stitch, therefore fine and unobtrusive threads should be
used for the needle and left looper.
Example: Right looper thread.Woolly nyron
Left looper thread .extra fine
Needle thread .. extra fine
Stitch length.2—3
1. Set thread tensions to normal sewing condition
for 1 needle, 3 thread overedge stitch and make
a test sample. (See page 11).
• When making above adjustment, the right
looper thread tension should be adjusted
as possible.
• Make a teat sample with two ply fabric.
2. Turn left Looper thread tension dial (yellow)
toward (+) mark so that the right looper thread
will come as close as possible to the needle thread
as shown in the sketch.
3. Turn needle thread tension dial (green) toward
(-) mark so that right looper thread, left looper
thread and needle thread will all come to the
edge of fabric as shown in the sketch.
4. O p e n loopei ^over.
Underside
5. T urn hand wheel toward you to bring movable knife to its lowest position and place it in the non¬
operating position as shown in sketch below.
18
