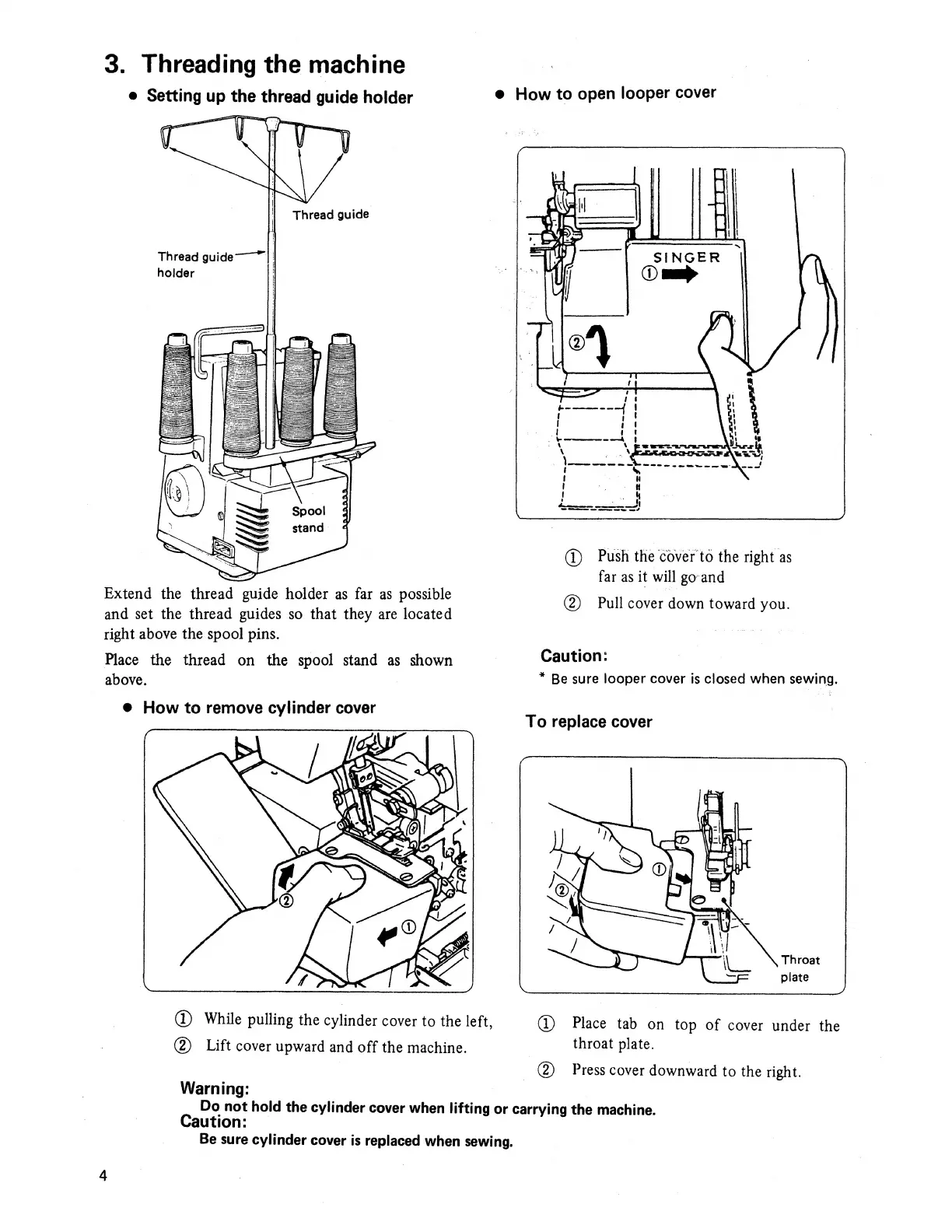

3. Threading the machine
• Setting up the thread guide holder
• How to open looper cover
C'Tm
Thread guide
Thread guide
holder
Extend the thread guide holder as far as possible
and set the thread guides so that they are located
right above the spool pins.
Place the thread on the spool stand as shown
above.
0 Push the cover to the right as
far as it will go and
© Pull cover down toward you.
Caution:
* Be sure looper cover is closed when sewing.
• How to remove cylinder cover
0 While pulling the cylinder cover to the left,
® Lift cover upward and off the machine.
To replace cover
throat plate.
0 Press cover downward to the right.
Warning:
Do not hold the cylinder cover when lifting or carrying the machine.
Caution:
Be sure cylinder cover is replaced when sewing.
