Singer 201P - Bobbin Case Replacement; Replacing the Bobbin Case

against the edge of the slot in the ring _ circular cutout B is opposite the ce
and push it around in the direction op- _D, as shown in Fig. 37. The ring E an
posite to the hook rotation until the — bobbin case may then be lifted out.
TO REPLACE THE BOBBIN CASE
When replacing the parts, THROAT PLATE
first place the bobbin case
into position with the finger
A, Fig. 37 in the opening in
the position plate under the
throat plate as shown in
Fig. 37. Turn the bobbin
case back and forth slightly
to make sure that it is proper-
ly seated, then place the hook
ring E in position with the
cucout B opposite the spring
D. Press the ring into place
and turn it in the direction
of hook rotation until the
spring locks it in position

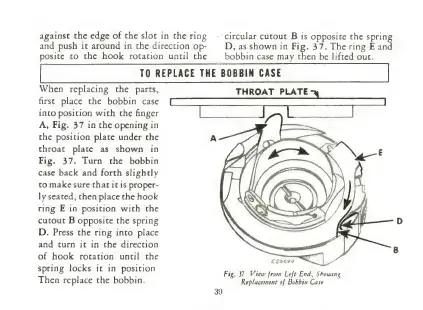

‘ Fig. 37 View from Left End, Showing
Then replace the bobbin. Replacement of Bobbin Case
39
