oi. Insert scrap of material in cuffler
and operate attachment until no oil
appears on work.

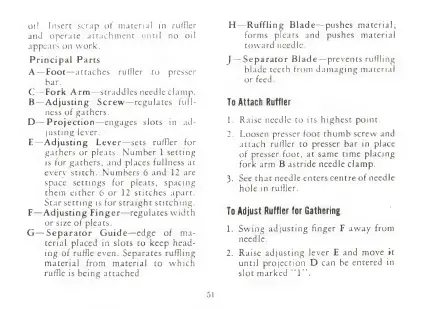

Principal Parts
A—Foot—attaches
bar.
C—Fork Arm—straddles needle clamp.
B—Adjusting Screw—regulates full-
ness of gathers.
D—Projection—engages slots in ad-
justing lever.
E—Adjusting Lever—sets ruffler for
gathers or pleats. Number 1 setting
is for gathers, and places fullness at
every stitch. Numbers 6 and 12 are
space settings for pleats, spacing
them either 6 or 12 stitches aparc.
Star setting 1s for straight stitching.
F—Adjusting Finger—regulates width
or size of pleats.
G—Separator Guide—edge of ma-
terial placed in slots to keep head-
ing of ruffle even. Separates ruffling
material from material to which
ruffle is being attached
ruffler cto presser
H—Ruffling Blade—pushes material;
forms pleats and pushes material
toward needle.
J—Separator Blade—prevents ruffling
blade teeth from damaging material
or feed.
To Attach Ruffler
1. Raise needle to its highest poinc.
2. Loosen presser foot thumb screw and
attach ruffler to presser bar in place
of presser foot, at same time placing
fork arm B astride needle clamp.
3. See that needle enters centre of needle
hole in ruffler.
To Adjust Ruffler for Gathering
1. Swing adjusting finger F away from
needle.
2. Raise adjusting lever E and move #t
until projection D can be entered in
slot marked ‘‘1"’.
