Singer 201P - Zipper Installation (Part 2); Completing Zipper Stitching

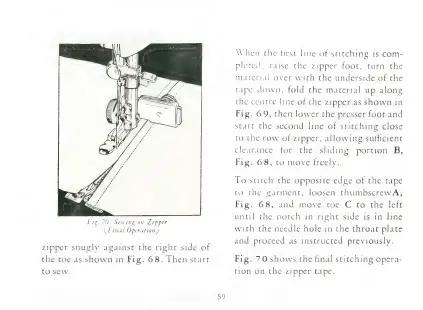

Fig. 70. Sewing on Zrpper
(Final Operation )
zipper snugly against the right side of
the toe as shown in Fig. 68. Then start
to sew.
When che tirst line of stitching is com-
pleted, raise the zipper foot, turn the
material over with che underside of the
tape down, fold the material up along
the centre line of the zipper as shown in
Fig. 69, then lower the presser foot and
stare the second line of stitching close
to the row of zipper, allowing sufficient
clearance for the sliding portion B,
Fig. 68, to move freely.
To stitch the opposite edge of the tape
to the garment, loosen thumbscrewA,
Fig. 68, and move toe C to the left
until the notch in right side is in line
with the needle hole in the throat plate
and proceed as instructed previously.
Fig. 70 shows the final stitching opera-
tion on the zipper tape.
