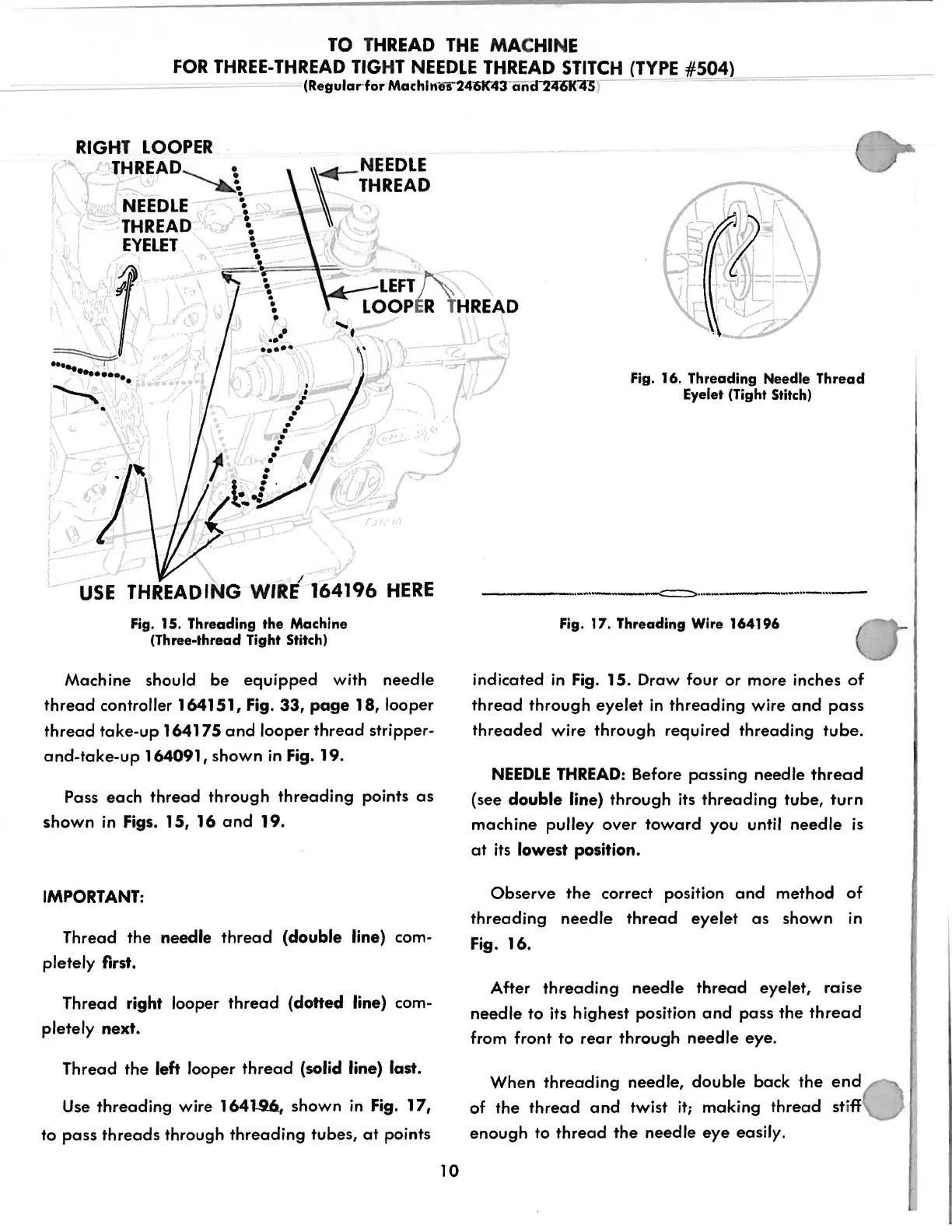

TO THREAD THE MA C HINE
FOR THREE- THREAD TIGHT NEEDLE THREAD STITCH (TYPE #504) ~==--
------ (Regularfor MachhteT2415K413 anCI246K4"5 )-
LEFT ~
LOOP ER T HREAD
Fig. 15. Threading the Machine
(Three-thread Tight Stitch)
Machine should be equipped with needle
thread controller 164151, Fig. 33, page 18, looper
thread take-up 164175 and looper thread stripper-
and-take-up 164091, shown in Fig. 19.
Pass each
thread through threading points as
shown in Figs. 15, 16 and 19.
IMPORTANT:
Thread the needle thread (double line) com-
pletely
first.
Thread right
looper thread (dotted line) com-
pletely
next.
Thread the
left looper thread (solid line) last.
Use threading wire 1641-96, shown in Fig. 17,
to
pass threads through threading tubes, at points
10
Fig. 16. Threading Needle Thread
Eyelet (Tight Stitch)
Fig. 17. Threading Wire 164196
indicated in Fig. 15. Draw four or more inches of
thread through eyelet in threading wire and pass
threaded wire through required threading tube.
NEEDLE THREAD: Before passing needle thread
(see double line) through its threading tube, turn
machine pulley over toward you until needle is
at its lowest position.
Observe the correct position and method of
threading needle thread eyelet as shown m
Fig. 16.
After
threading needle thread eyelet, raise
needle to its highest position and pass the thread
from front to rear through needle eye.
When
threading needle, double back the end
of the thread and twist it; making thread stiff
enough to thread the needle eye easily.
