INSTALLATION OF MACHINE AND BASE ON TABLE
#6
Drill Hole <* inch Diameter)
BELT GUARD
Flat
Head
to Accommodate Chain for Presser
1 inch
Wood Screws
~ Foot Lifting L _ e _ v _ e _ r ~ .. r._ .A
#8
Round Head
3
.4 Inch
Wood Screws
#7 FlatHead
3,4 Inch Wood Screws

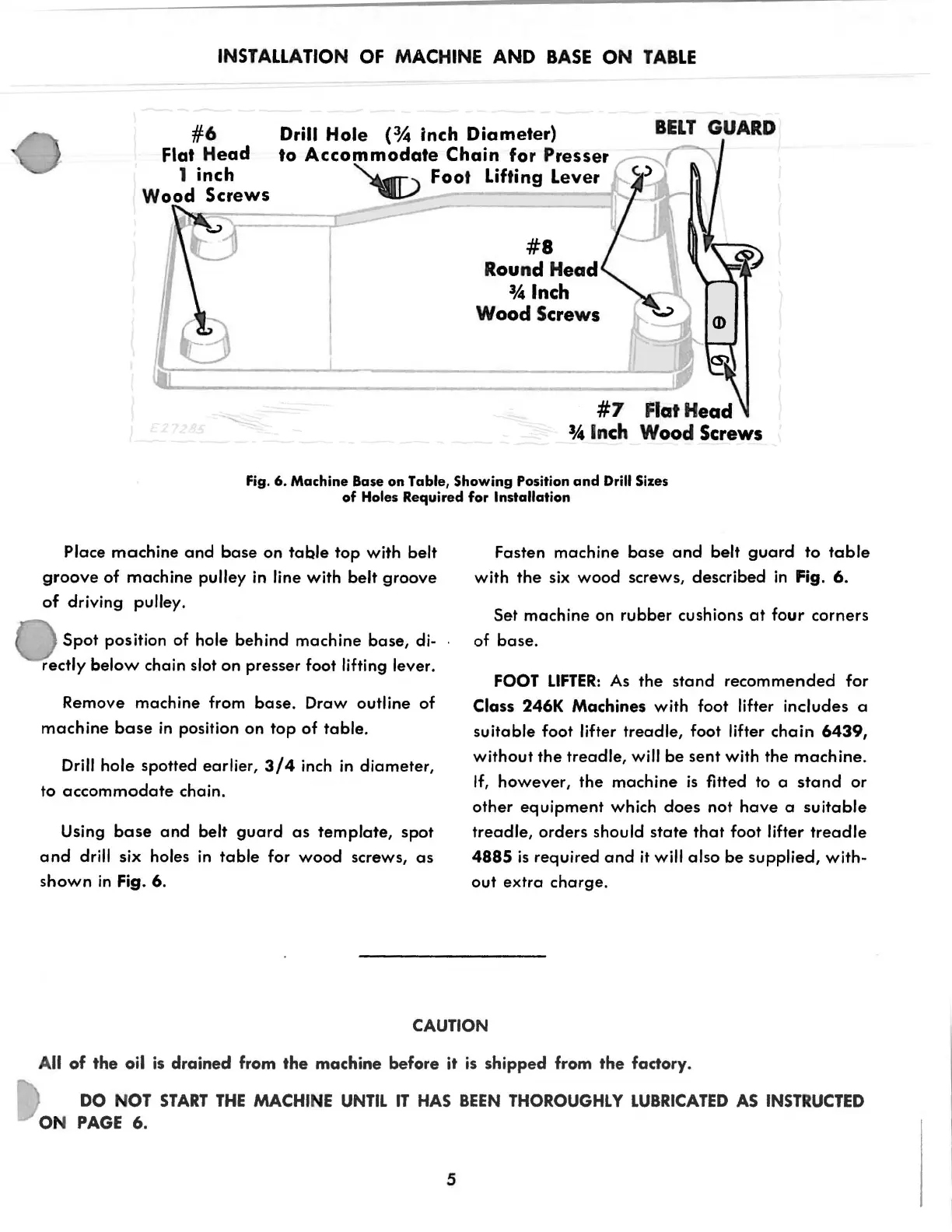

Fig. 6. Machine Base on Table, Showing Position and Drill Sizes
of Holes Required for Installation
Place machine and base on table top with belt
groove of machine pulley in line with belt groove
of driving pulley.
Spot position of hole behind machine base, di-
rectly
below chain slot on presser foot lifting lever.
Remove machine from base. Draw outline of
machine bose in position on top of table.
Drill hole spotted earlier, 3/4 inch in diameter,
to accommodate chain.
Using
base and belt guard as template, spot
and drill six holes in table for wood screws, as
shown in Fig. 6.
Fasten machine base and belt guard to table
with the six wood screws, described in Fig. 6.
Set machine on rubber cushions at four corners
of
base.
FOOT LIFTER: As the stand recommended for
Class 246K Machines with foot lifter includes a
suitable foot lifter treadle, foot lifter chain 6439,
without the treadle, will be sent with the machine.
If, however, the machine is fitted to a stand or
other equipment which does not have a suitable
treadle, orders should state that foot lifter treadle
4885 is required and it will also be supplied, with-
out extra charge.
CAUTION
All of the oil is drained from the machine before it is shipped from the factory.
DO NOT START THE MACHINE UNTIL IT HAS BEEN THOROUGHLY LUBRICATED AS INSTRUCTED
ON PAGE 6.
5
