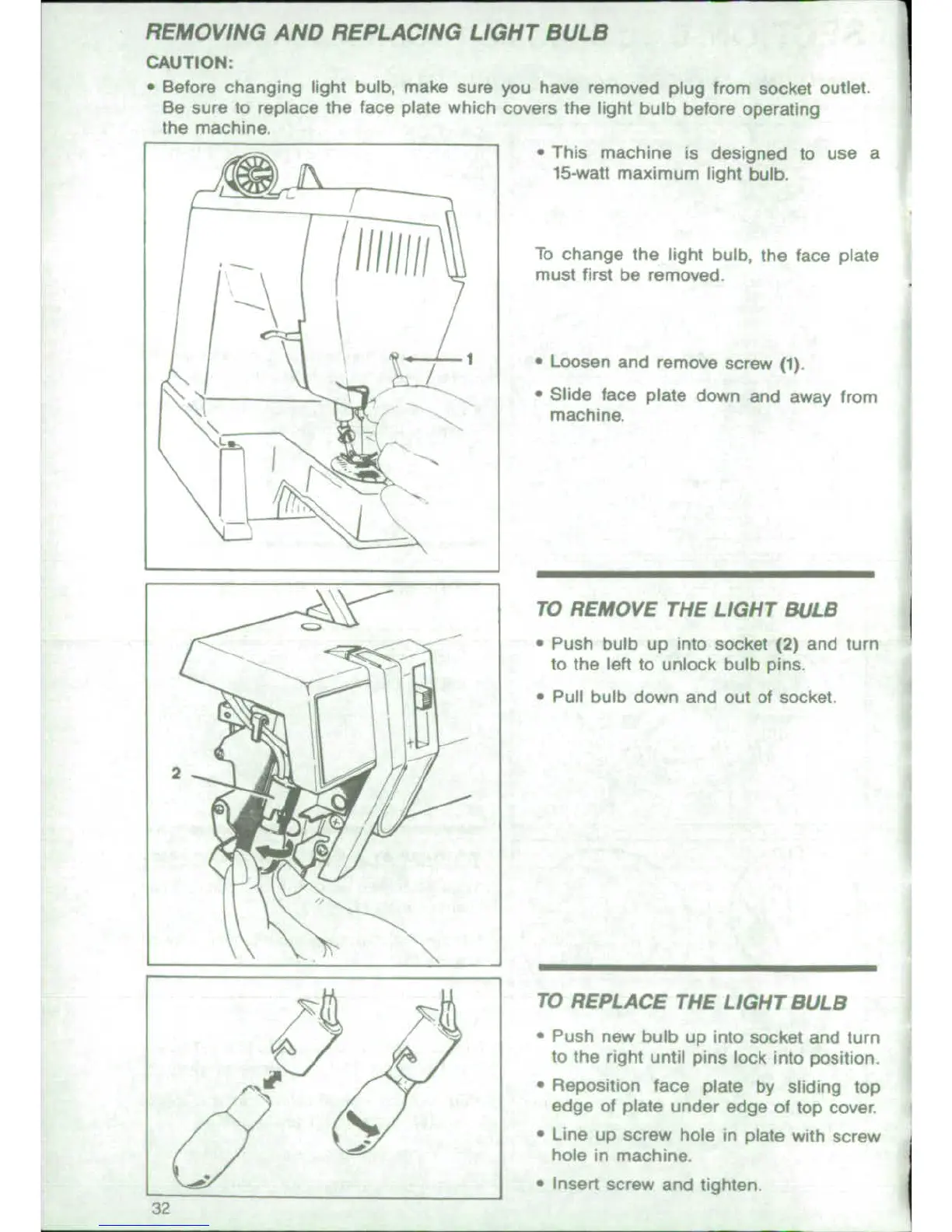

REMOVING
AND
REPLACING
LIGHT
BULB
CAUTION:
.
Before
changing
light
bulb,
make
sure
you
have
removed
plug
from
socket
outlet.
Be
sure
to
replace
the
face
plate
which
covers
the
light
bulb
before
operating
the
machine.
This
machine
is
designed
to
use
a
15-watt
maximum
light
bulb.
i/111
|7k
|To
change
the
light
bulb,
Ihe
face
plate
must
first
be removed.
I
cg
~~~~/
¶ \
I
s
l
1
* Loosen
and
remove
screw
(1).
___________
*
Slide
face plate
down
and
away
from
machine.
'~~~'
TO REMOVE
THE
LIGHT
BULB
Push
bulb
up
into
socket
(2)
and
turn
to the
left
to
unlock
bulb
pins.
i
Pull
bulb
down
and
out
of socket.
*
TO
REPLACE
THE
LIGHT
BULB
.Push
new
bulb
up into
socket
and
turn
to the
right
until
pins
lock
into position.
* Reposition
face
plate
by
sliding
top
edge
of plate
under
edge
of
top
cover
.Line
up screw
hole
in
plate
with
screw
hole
in machine.
.insert
screw
and
tighten.
32
